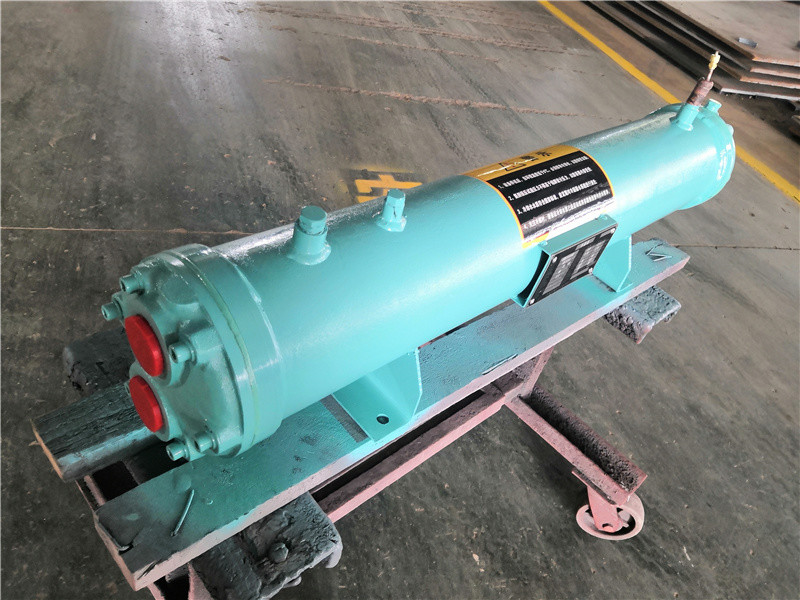

    Marine Copper Titanium Stainless Steel Shell And Tube Condenser

    Ask Lasest Price
    Brand Name : GREEFOUN
    Certification : CE, ISO
    Price : USD300-USD3000
    Supply Ability : 1000PCS PER YEAR
    Delivery Time : 7-15DAYS
    • Product Details
    • Company Profile

    Marine Copper Titanium Stainless Steel Shell And Tube Condenser

    Marine Heat Exchanger industrial custom condenser


    shell and tube condenser


    1, Introduction:


    (1) The product is applicable to water chiller units, water source heat pump units etc.


    (2) Suitable refrigerants are R22, R134a, R407C, R410A etc.


    (3) Apply load cold agent for tap water, underground water, river water and sea water or brine, water and


    glycol solution, sulfate solution, etc.


    (4) For heat exchange tube, copper pipe, copper nickel alloy tube, aluminum brass tube, stainless steel


    tube, etc. Shell using seamless steel pipe, stainless steel tube, etc.


    2, Heat exchange tube: two main specifications.


    (1) ∅ within 5/8 "efficient copper pipe outside screw wing, ∅ 5/8" stainless steel pipe.


    (2) the ∅ 3/4 "inside outside screw wing efficient copper tube, ∅ 3/4" stainless steel pipe


    3, Main material, the shell of 20 # seamless steel pipe, stainless steel pipe.


    4, Interface:


    Details drawing and technical data are as below:


    DRAWING

    Safety Shell And Tube Heat Exchanger Copper Nickel Alloy Tube Material 0 Safety Shell And Tube Heat Exchanger Copper Nickel Alloy Tube Material 1


    CONDENSER SERIES SINGLE MACHINE CAPACITY: 3RT TO 15RT


    ModelRefrig. ton (RT)Refrig. ton (104kcal/h)Dimension (mm)Weight (kg)Max. water flow
    DT1TACE
    QXC3S431.1341146357217514070232.5
    QXC5S551.8901406357217516570334
    QXC8S683.0241687628589018592496.5
    QXC10S6103.78016895310499018592587.8
    QXC12S6124.53616895310499018592629.6
    QXC15S6155.67016812701366100185927511.6

    ModelS (Vent)

    P (fluoride inlet)

    Copper pipe diameter (inch)

    L(fluoride outlet)

    Copper pipe diameter (inch)

    W (standard port)W (optional port)
    FPT(inner pipe thread)FPT(inner pipe thread)FPT(inner pipe thread)
    QXC3S41/45/85/813/4
    QXC5S51/45/85/81-1/21
    QXC8S61/47/85/81-1/21
    QXC10S61/47/85/81-1/21
    QXC12S61/41-1/87/81-1/21
    QXC15S61/41-1/87/81-1/21

    CONDENSER SERIES SINGLE MACHINE CAPACITY: 20RT TO 35RT


    ModelRefrig. ton (RT)Refrig. ton (104kcal/h)Dimension (mm)Weight (kg)Max. water flow
    DT1TACE
    QXC20S8207.560219127013809023811311015.8
    QXC25S8259.4502191600171012023811312119.5
    QXC30S83011.3402191600171012023811313423
    QXC35S83513.2302191600171012023811314027.3

    ModelS (Vent)

    P (fluoride inlet)

    Copper pipe diameter (inch)

    L(fluoride outlet)

    Copper pipe diameter (inch)

    W (standard port)W (optional port)
    FPT(inner pipe thread)FPT(inner pipe thread)FPT(inner pipe thread)
    QXC20S81/41-1/87/82-1/22
    QXC25S81/41-1/87/82-1/22
    QXC30S81/41-3/81-1/82-1/22
    QXC35S81/41-5/81-1/82-1/22

    CONDENSER SERIES SINGLE MACHINE CAPACITY: 40RT TO 60RT


    ModelRefrig. ton (RT)Refrig. ton (104kcal/h)Dimension (mm)Weight (kg)Max. water flow
    DT1TACE
    QXC40S104015.12273160017501202738517231
    QXC45S104517.01273160017501202738518035
    QXC50S105018.90273203221821202738520938.5
    QXC55S105520.79273203221821202738521742.5
    QXC60S106022.68273203221821202738522446

    ModelS (Vent)

    P (fluoride inlet)

    Copper pipe diameter (inch)

    L(fluoride outlet)

    Copper pipe diameter (inch)

    W (standard port)W (optional port)
    FPT(inner pipe thread)FPT(inner pipe thread)FPT(inner pipe thread)
    QXC40S103/81-5/81-1/832-1/2
    QXC45S103/81-5/81-1/832-1/2
    QXC50S103/81-5/81-1/832-1/2
    QXC55S103/81-5/81-3/832-1/2
    QXC60S103/81-5/81-3/832-1/2

    Marine Copper Titanium Stainless Steel Shell And Tube Condenser
