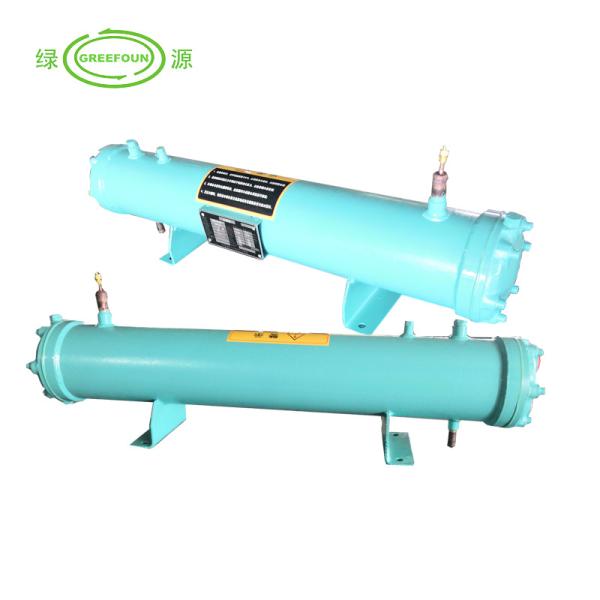

Industrial Water Cooled Condenser Seawater Heat Exchanger air cooled condenser copper tube

Small-sized condenser shell can choose thick seamless steel pipe. Large-scale condenser shell will be

made of steel plate rolling.

The tubesheet is welded to both ends of the housing to form a complete housing. Tubes on the

processing of a number of holes, heat transfer tube through the tube hole, both ends and tube plate with

expansion or welding connected, and to have good air tightness.

Shell and tube condenser is mainly used in water-cooled chiller.

According to the shell and the heat transfer tube bundle space orientation, shell and tube condenser can

be divided into vertical and horizontal two. However, regardless of which type, cooling water is to take the

pipeline, the refrigerant is walking shell, that is, high temperature, high pressure refrigerant vapor in the

outer surface of the heat transfer tube, condensation and convergence to the point of the shell.

The reason for this arrangement is because the average heat transfer coefficient between the cooling

water and the tube bundle is generally higher than the average heat transfer coefficient of the

condensation of the refrigerant vapor, and the condensation requires a large heat transfer surface. In

addition, High-pressure refrigerant vapor pressure control in a certain range, also need a larger space.

CONDENSER SERIES SINGLE CIRCUIT

CAPACITY: 40RT TO 70RT

CONDENSER SERIES SINGLE CIRCUIT

CAPACITY: 110RT TO 200RT

COOPERATED CLENTS

WUHAN QIAOXIN REFRIGERATION EQUIPMENT CO., LTD. was founded in 2003, located in Wuhan Hubei

province, which is a professional manufacturing enterprise dedicated to R&D, design, production and

marketing of shell and tube condenser, evaporator and heat exchanger products etc. From the aspect of

technology, QIAOXIN always hold the leading position in domestic market.

QIAOXIN obtained Class I, Class II Pressure Vessel Design License and Pressure Vessel Manufacture

License, owned CNC machining center, CNC tube expander, CNC cutting machine and CO2 Flux Cored Gas

Shielded Welding etc series of advanced production equipments. QIAOXIN have a group of specialized

persons long engaged in the design and production of heat exchangers. Through long terms of technical

research, development and practice, different types and sizes of heat exchanger from design to production,

installation to test, QIAOXIN formed a complete set of management system. The rigorous design and precise

production, makes QIAOXIN can fulfill different operating requirements of customer and provide products

under various working condition. QIAOXIN also passed ISO9001:2008 international quality system certification,

through advanced quality management system strictly to control the whole process of product R&D, design,

production, inspection and service.

“Quality comes first, go for perfect”, after decades of development, QIAOXIN obtained great reputation not

only in domestic market, also spreads well in abroad. Products are exported to Europe and the United States

(owned PED certificate), Southeast Asia, Africa, and all over the country (including the "Midea" "Chigo"

"Dunham-bush" "TICA" and other well-known domestic air conditioning companies).

QIAOXIN always hold a strong sense of mission to the development of Chinese refrigeration technology, using

the most advanced refrigeration technologies, to realize the harmonious coexistence between man and

nature. On the road of development in the future, QIAOXIN will continue to adhere to the harmonious, healthy

and scientific development direction, following with the enterprise concept of "Ethics first, product second",

carrying with full enthusiasm to provide high cost performance products, outstanding product performance

and efficient services for the general customers.
