    R410A Refrigerant Titanium Liquid Heat Exchanger With 18KW Cooling Capacity

    Ask Lasest Price
    Brand Name : GREEFOUN
    Model Number : QX-530M
    Certification : CE
    Price : USD300-USD3000
    Payment Terms : TT, L/C, Western Union
    Supply Ability : 100000pieces/year
    Delivery Time : within 15days
    • Product Details
    • Company Profile

    R410A Refrigerant Titanium Liquid Heat Exchanger With 18KW Cooling Capacity

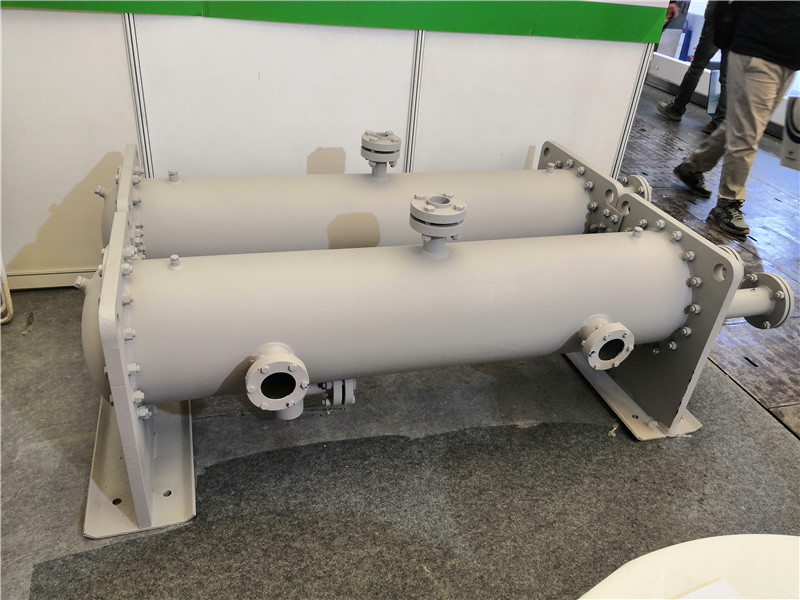

    full liquid evaporator marine copper titanium heat exchanger screw chiller


    The full liquid evaporator is running in the pipe, and the refrigerant evaporates outside the pipe cluster, so the heat transfer surface is basically in contact with the liquid refrigerant. Generally, the refrigerant volume filled in the shell is about 55% - 65% of the effective volume of the cylinder. After the liquid is heated and gasified, it is returned to the compressor through the liquid separator on the top of the cylinder. The operation and management are convenient and the heat transfer coefficient is high.


    Flooded Type Evaporator Condenser (External Oil Separator) Single Circuit

    Capacity 350KW TO 1800KW

    ModelsQX-350MQX-410MQX-650MQX-950MQX-1300MQX-1800M
    Refrigerant R22 (or other environmental refrigerants)Refrigerating capacity (KW)35041065095013001800

    Heating capacity (KW)

    400480730112016252250
    Wam3/h6171112.3164224310
    Wbm3/h7688.5141205380387
    Dpnbar0.530.510.610.680.760.86

    Size(mm)

    A205020502540271027103050
    A1400450450550550550
    A2350380380450450450
    L1220022002690286028603200
    B114013001300158016701670
    B1600680680820860860
    C1808870870100310531053
    C2808870870100310531053
    D1355426426566616616
    D2426480480616666666
    H1280300300420420420
    H2240260260380420420

    Inlet/Outlet Size

    a/b(DN)125150150250250250
    c1-2(mm)353542425454
    d1(mm)809292105105105
    d2(mm)546780809292

    Oil Separator

    Liter455575110200300
    Weightkg4516901150179022702660

    Notes: Wa Evaporator Water Flow Wb Condenser Water Flow

    Dpn Circulating Cooling Water Pressure Drop

    Refrigerating condition: evaporating temperature 5°C, condensing temperature 34°C, chilled water inlet temperature 12°C and outlet 7°C, cooling water inlet temperature 18°C and outlet 29°C

    Heating condition: evaporating temperature 4.5°C, condensing temperature 50°C, hot water inlet temperature 40°C and 45°C, heat source water inlet temperature 16°C and 7°C.

    R410A Refrigerant Titanium Liquid Heat Exchanger With 18KW Cooling CapacityR410A Refrigerant Titanium Liquid Heat Exchanger With 18KW Cooling Capacity
