    R134A Refrigerant 3000KW Shell And Tube Evaporator

    Ask Lasest Price
    Brand Name : GREEFOUN
    Model Number : RE45
    Certification : CE
    Payment Terms : TT, L/C, Western Union
    Supply Ability : 100000pieces/year
    Delivery Time : within 15days
    • Product Details
    • Company Profile

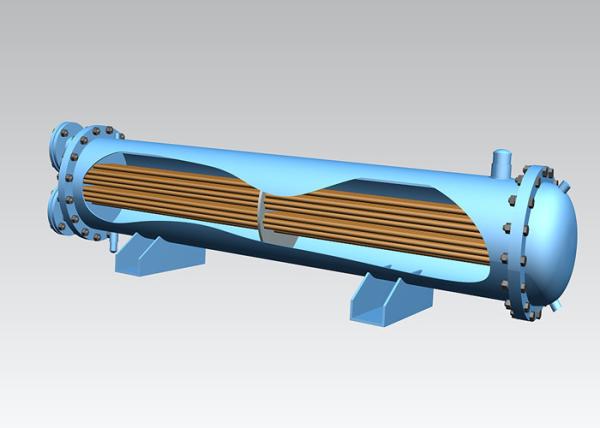

    R134A Refrigerant 3000KW Shell And Tube Evaporator

    3000kw shell and tube evaporator evaporation chiller cooler R134A Refrigerant


    ModelsQXU35D6QXU65D8QXU95D8QXU185D10QXU270D10QXU310D10

    Rated data

    Refrigerant R22

    ti=12°C te=2°C

    tu=7°C Dts=5°C

    QnKW356595185270310

    Kcal/h

    (×103 )

    30.256.781.7159232267
    Wnm3 /h611.416.431.846.453.3
    Wmm3 /h1014.521416568
    Dpnbar0.270.390.460.360.420.43

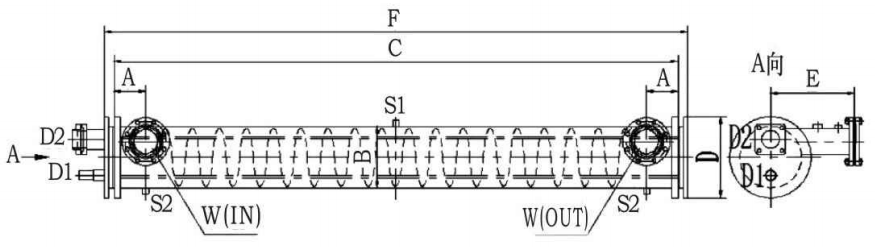

    Size(mm)

    A127514311781232026542654
    B168168219219273273
    C107161200200234234
    D104011801530200022802280
    E200240240300300300

    Inlet/Outlet Size

    W(DN)50506589114114
    D1(mm)162222223535
    D2(mm)223535425454
    Weightkg7293136232279296

    Notes: Qn Rated Refrigerating Capacity Wn Cooling Water Flow

    Wm Maximum Cooling Water Flow Dpn Circulating Cooling Water Pressure Drop

    Dts Superheat Temperature

    Straight Tube Dry Type Evaporator (Single Circuit)


    (Capacity) 310KW TO 1500KW


    ModelsRE310S10RE680S14RE750S14RE1100S16RE1240S20RE1500S20

    Rated data

    Refrigerant R22

    ti=12°C te=2°C

    tu=7°C Dts=5°C

    QnKW310680750110012401500
    Kcal/h(×103 )26758570098310761367
    Wnm3 /h53.3116121168230289
    Wmm3 /h68145136176261328
    Dpnbar0.430.490.480.480.400.58

    Size(mm)

    A140170170170190230
    B273377377426480480
    C250028603000300028603500
    D360460460530600600
    E370400400450500550
    F258629463086312429843624

    Inlet/Outlet Size

    W(DN)100150150150200250
    D1(mm)3542424254(2)54(2)
    D2(mm)67909292108108
    Weightkg2966697068088631069

    Notes: Qn Rated Refrigerating Capacity Wn Cooling Water Flow

    Wm Maximum Cooling Water Flow Dpn Circulating Cooling Water Pressure Drop

    Dts Superheat Temperature


    Straight Tube Dry Type Evaporator (Double Circuit)


    (Capacity) 320KW TO 2200KW


    ModelsRE320D10RE680D14RE750D14RE1100D16RE1240D20RE2200D20

    Rated data

    Refrigerant R22

    ti=12°C te=2°C

    tu=7°C Dts=5°C

    QnKW320680750110012401500
    Kcal/h(×103 )26758570098310761456
    Wnm3 /h53.3116121168230323
    Wmm3 /h68145136176261345
    Dpnbar0.430.490.480.480.400.58

    Size(mm)

    A140170170170200230
    B273377377426480480
    C250028603000300031003500
    D360460460530600600
    E370400400450500550
    F258629463086312432243624

    Inlet/Outlet Size

    W(DN)100150150150200250
    D1(mm)3542424242(4)54(4)
    D2(mm)67909292108108
    Weightkg2966697068088921218

    Notes: Qn Rated Refrigerating Capacity Wn Cooling Water Flow

    Wm Maximum Cooling Water Flow Dpn Circulating Cooling Water Pressure Drop

    Dts Superheat Temperature

    According to the different refrigerant can be used for heat exchange tube copper T2, high phosphorus copper TP2, nickel copper BFE10-1-1, tin copper HSN70-1, aluminum copper HA177-2 and other materials.Heat exchange tube and tube plate generally adopt the connecting way of expanding, in setting a refrigerant import general distributor to average distribution of gas-liquid mixture and dry evaporator generally suitable for displacement is less than 2000 m3 / h used in the compressor refrigeration system, due to the uneven distribution of refrigerant in the large scale system problem, had better not use this type of evaporator.
