    R140A Straight Dry Spiral Baffle Plate Evaporator

    Ask Lasest Price
    Brand Name : GREEFOUN
    Model Number : RE750S14
    Certification : CE
    Payment Terms : TT, L/C, Western Union
    Supply Ability : 100000pieces/year
    Delivery Time : within 15days
    • Product Details
    • Company Profile

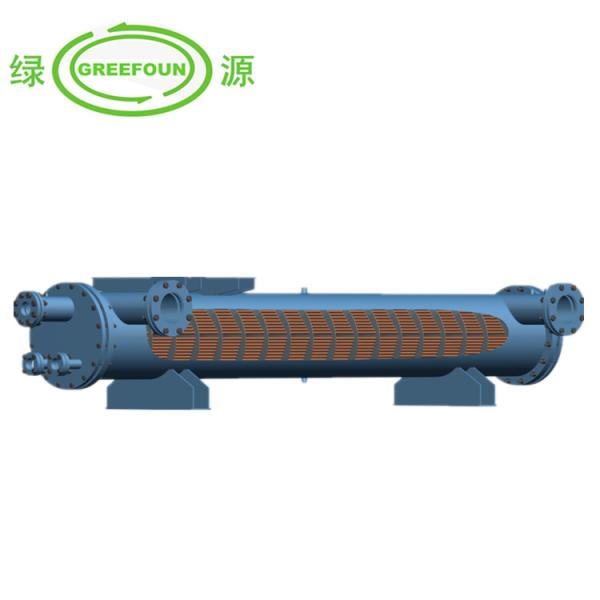

    R140A Straight Dry Spiral Baffle Plate Evaporator

    Water Cooled Chiller Shell And Tube Evaporator Reciprocating Compressor


    Screw chiller with high efficiency, good performance, low noise, vibration, energy saving, high reliability,

    long life and other advantages.

    According to customer needs and the size of cold tonnage, using single or multi-machine combination.

    Compressor can change according to the load, automatically turn alternately, balance the number of

    operating hours of the compressor, greatly extending the use of chillers.

    The use of industrial

    1. injection molding machine for the choice of the size of the machine for injection

    molding machine mold cooling, that is, need to use 25HP chiller. For the cooling of other equipment,

    depending on the specific flow rate of the cooling water cycle.

    2. Chiller water tank and pump selection Sometimes according to the actual situation of the customer

    factory, open chiller, in the external pump, the pump power requirements and the same type of box chiller

    requirements the same.

    3. Chiller back to the water temperature, preferably not higher than 40 degrees, the higher the return

    water temperature, the greater the damage to the compressor.


    Straight Tube Dry Type Evaporator (Single Circuit)

    Capacity 310KW TO 1500KW

    ModelsRE310S10RE680S14RE750S14RE1100S16RE1240S20RE1500S20

    Rated data

    Refrigerant R22

    ti=12°C te=2°C

    tu=7°C Dts=5°C

    QnKW310680750110012401500
    Kcal/h(×103 )26758570098310761367
    Wnm3 /h53.3116121168230289
    Wmm3 /h68145136176261328
    Dpnbar0.430.490.480.480.400.58

    Size(mm)

    A140170170170190230
    B273377377426480480
    C250028603000300028603500
    D360460460530600600
    E370400400450500550
    F258629463086312429843624

    Inlet/Outlet Size

    W(DN)100150150150200250
    D1(mm)3542424254(2)54(2)
    D2(mm)67909292108108
    Weightkg2966697068088631069

    Notes: Qn Rated Refrigerating Capacity Wn Cooling Water Flow

    Wm Maximum Cooling Water Flow Dpn Circulating Cooling Water Pressure Drop

    Dts Superheat Temperature
