    Full Liquid Type R22 Water Cooled Evaporator Flooded Heat Exchanger

    Ask Lasest Price
    Brand Name : GREEFOUN
    Model Number : QX-530M
    Certification : CE
    Payment Terms : TT, L/C, Western Union
    Supply Ability : 100000pieces/year
    Delivery Time : within 15days
    • Product Details
    • Company Profile

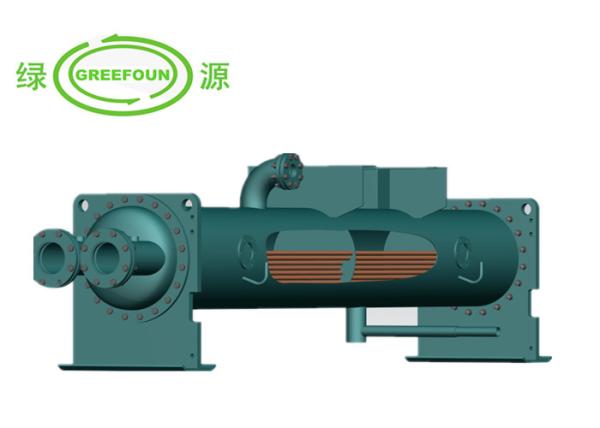

    Full Liquid Type R22 Water Cooled Evaporator Flooded Heat Exchanger


    Flooded Type Evaporator Condenser (External Oil Separator) Single Circuit

    Capacity 350KW TO 1800KW

    型号ModelsQX-350MQX-410MQX-650MQX-950MQX-1300MQX-1800M
    Refrigerant R22 (or other environmental refrigerants)Refrigerating capacity (KW)35041065095013001800

    Heating capacity (KW)

    400480730112016252250
    Wam3/h6171112.3164224310
    Wbm3/h7688.5141205380387
    Dpnbar0.530.510.610.680.760.86

    外形尺寸

    Size(mm)

    A205020502540271027103050
    A1400450450550550550
    A2350380380450450450
    L1220022002690286028603200
    B114013001300158016701670
    B1600680680820860860
    C1808870870100310531053
    C2808870870100310531053
    D1355426426566616616
    D2426480480616666666
    H1280300300420420420
    H2240260260380420420

    进出口径

    Inlet/Outlet Size

    a/b(DN)125150150250250250
    c1-2(mm)353542425454
    d1(mm)809292105105105
    d2(mm)546780809292

    油分

    Oil Separator

    Liter455575110200300
    重量Weightkg4516901150179022702660

    Notes: Wa Evaporator Water Flow Wb Condenser Water Flow

    Dpn Circulating Cooling Water Pressure Drop

    Refrigerating condition: evaporating temperature 5°C, condensing temperature 34°C, chilled water inlet temperature 12°C and outlet 7°C, cooling water inlet temperature 18°C and outlet 29°C

    Heating condition: evaporating temperature 4.5°C, condensing temperature 50°C, hot water inlet temperature 40°C and 45°C, heat source water inlet temperature 16°C and 7°C.
