Brand Name : | GREEFOUN |
Model Number : | QXU220D10 |
Certification : | CE |
Payment Terms : | TT, L/C, Western Union |
Supply Ability : | 100000pieces/year |
Delivery Time : | within 15days |

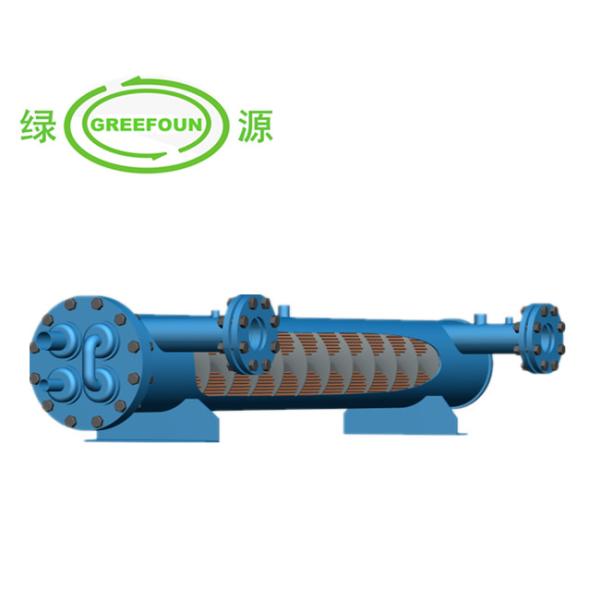

U-shaped dry type evaporator stainless steel tube double circuit
Water Cooled Chiller Shell And Tube Evaporator Reciprocating Compressor
Screw chiller with high efficiency, good performance, low noise,
vibration, energy saving, high reliability,
long life and other advantages.
According to customer needs and the size of cold tonnage, using
single or multi-machine combination.
Compressor can change according to the load, automatically turn
alternately, balance the number of
operating hours of the compressor, greatly extending the use of
chillers.
The use of industrial
1. injection molding machine for the choice of the size of the
machine for injection
molding machine mold cooling, that is, need to use 25HP chiller.
For the cooling of other equipment,
depending on the specific flow rate of the cooling water cycle.
2. Chiller water tank and pump selection Sometimes according to the
actual situation of the customer
factory, open chiller, in the external pump, the pump power
requirements and the same type of box chiller
requirements the same.
3. Chiller back to the water temperature, preferably not higher
than 40 degrees, the higher the return
water temperature, the greater the damage to the compressor.
U Shaped Tube Dry Type Evaporator (Double Circuit)
Capacity 35KW TO 310KW
型号Models | QXU35D6 | QXU65D8 | QXU95D8 | QXU185D10 | QXU270D10 | QXU310D10 | ||
额定数据制冷剂 Rated data Refrigerant R22 ti=12°C te=2°C tu=7°C Dts=5°C | Qn | KW | 35 | 65 | 95 | 185 | 270 | 310 |
Kcal/h (×103 ) | 30.2 | 56.7 | 81.7 | 159 | 232 | 267 | ||
Wn | m3 /h | 6 | 11.4 | 16.4 | 31.8 | 46.4 | 53.3 | |
Wm | m3 /h | 10 | 14.5 | 21 | 41 | 65 | 68 | |
Dpn | bar | 0.27 | 0.39 | 0.46 | 0.36 | 0.42 | 0.43 | |
外形尺寸 Size(mm) | A | 1275 | 1431 | 1781 | 2320 | 2654 | 2654 | |
B | 168 | 168 | 219 | 219 | 273 | 273 | ||
C | 107 | 161 | 200 | 200 | 234 | 234 | ||
D | 1040 | 1180 | 1530 | 2000 | 2280 | 2280 | ||
E | 200 | 240 | 240 | 300 | 300 | 300 | ||
进出口径 Inlet/Outlet Size | W(DN) | 50 | 50 | 65 | 89 | 114 | 114 | |
D1(mm) | 16 | 22 | 22 | 22 | 35 | 35 | ||
D2(mm) | 22 | 35 | 35 | 42 | 54 | 54 | ||
重量Weight | kg | 72 | 93 | 136 | 232 | 279 | 296 | |
注:Qn 额定制冷量 Wn 冷却水流量 Wm 最大冷却水流量 Dpn 循环冷却水压降 Dts 过热温度 Notes: Qn Rated Refrigerating Capacity Wn Cooling Water Flow Wm Maximum Cooling Water Flow Dpn Circulating Cooling Water Pressure Drop Dts Superheat Temperature |
