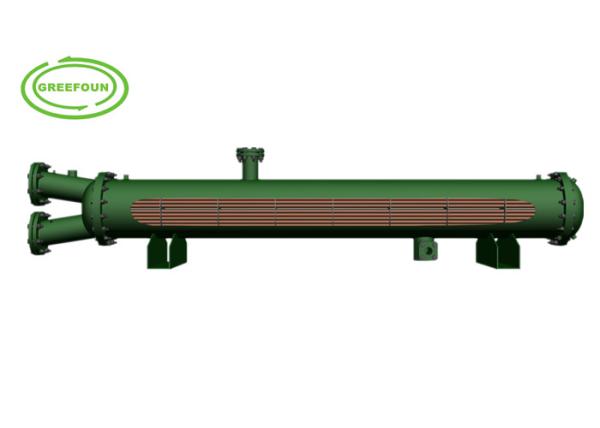

Anti-corrosion Seawater Marine Use condenser

Water Cooled Heat Exchanger

According to the composition of the sea unreasonable, the choice of condensate pipe requirements and

different. In the clean sea water with the pollution of the sea is not the same.

Usually the seawater condenser is horizontal shell and tube, the condenser material is usually HAl77-2

aluminum brass, BFe10-1-1 (Cu90-Ni10), BFe30-1-1 (Cu70-Ni30) copper nickel alloy and Ti titanium Alloy

tube Condenser copper head material using ZCuAl9Mn2 bronze alloy, shell and tube can be used

according to different requirements 316L stainless steel or Q345 and 16MnR low carbon steel pipe, you

can also use titanium alloy composite materials.

corrosion-resistant treatment:

The end cap with cast iron or carbon steel, in the sea side of the brush coated with a thick slurry of epoxy

coal tar pitch primer, two thick paste epoxy coal tar pitch, while setting the aluminum alloy (performance

requirements by GB4948-85) sacrifice Anode device, anti-corrosion effect is obvious

The tubesheet or the composite layer material in contact with seawater shall be in accordance with the

pipe.

In order to increase the corrosion resistance of the condensate of the seawater condenser, we made the

corresponding pre-film treatment. Through the comprehensive test, we found that the pretreatment of the

seawater condenser, every 10,000 hours to run the corrosion rate decreased significantly.

CONDENSER SERIES DOUBLE CIRCUIT

CAPACITY: 3TR TO 426 TR

Special Notes: Temperature sensing port is on the water inlet/outlet port, vent nozzle is on the top of the back channel and dewatering outlet is on the bottom. All the connection sizes can be custom-made. Flow switch port could be added on the water inlet/outlet port.

Pressure Design: Use steel pressure channel, normally the design pressure for the shell pass is 2.4MPa, the design pressure for the tube pass is 0.8 or 1.0MPa. For other special requirements, please contact the technical department.
