    High Temperature Stainless Steel Condenser Low Thermal Resistance For Metallurgy

    Ask Lasest Price
    Brand Name : GREEFOUN
    Model Number : QX-C55
    Certification : CE
    Payment Terms : TT, L/C, Western Union
    Supply Ability : 100000pieces/year
    Delivery Time : within 15days
    • Product Details
    • Company Profile

    High Temperature Stainless Steel Condenser Low Thermal Resistance For Metallurgy

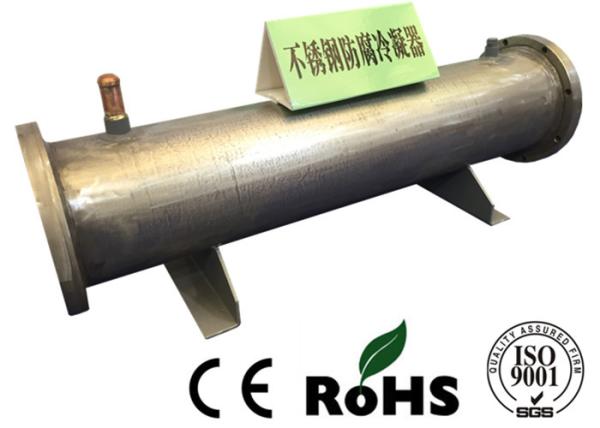

    Shell and Tube Stainless Steel Condenser


    Water - Cooled Tube Heat Exchanger

    1, Introduction:


    (1) The product is applicable to water chiller units, water source heat pump units etc.


    (2) Suitable refrigerants are R22, R134a, R407C, R410A etc.


    (3) Apply load cold agent for tap water, underground water, river water and sea water or brine, water and


    glycol solution, sulfate solution, etc.


    (4) For heat exchange tube, copper pipe, copper nickel alloy tube, aluminum brass tube, stainless steel


    tube, etc. Shell using seamless steel pipe, stainless steel tube, etc.

    2, Heat exchange tube: two main specifications.

    (1) ∅ within 5/8 "efficient copper pipe outside screw wing, ∅ 5/8" stainless steel pipe.

    (2) the ∅ 3/4 "inside outside screw wing efficient copper tube, ∅ 3/4" stainless steel pipe

    3, Main material, the shell of 20 # seamless steel pipe, stainless steel pipe.

    4, Interface:

    CONDENSER SERIES SINGLE CIRCUIT


    CAPACITY: 3RT TO 15RT

    ModelRefrig. ton (RT)Refrig. ton (104kcal/h)Dimension (mm)Weight (kg)Max. water flow
    DT1TACE
    QXC3S431.1341146357217514070232.5
    QXC5S551.8901406357217516570334
    QXC8S683.0241687628589018592496.5
    QXC10S6103.78016895310499018592587.8
    QXC12S6124.53616895310499018592629.6
    QXC15S6155.67016812701366100185927511.6

    ModelS (Vent)

    P (fluoride inlet)
    Copper pipe diameter (inch)

    L(fluoride outlet)
    Copper pipe diameter (inch)

    W (standard port)W (optional port)
    FPT(inner pipe thread)FPT(inner pipe thread)FPT(inner pipe thread)
    QXC3S41/45/85/813/4
    QXC5S51/45/85/81-1/21
    QXC8S61/47/85/81-1/21
    QXC10S61/47/85/81-1/21
    QXC12S61/41-1/87/81-1/21
    QXC15S61/41-1/87/81-1/21

    U SHAPED TUBE DRY EVAPORATOR (DOUBLE SYSTEM)


    CAPACITY: 35KW TO 95KW


    ModelsQXU35D6QXU47D6QXU56D6QXU65D8QXU80D8QXU95D8

    Rated data

    Refrigerant R22

    ti=12°C te=2°C

    tu=7°C Dts=5°C

    QnKW354756658095
    Kcal/h(×103 )30.240.448.256.768.881.7
    Wnm3 /h689.611.413.816.4
    Wmm3 /h1011.41214.51921
    Dpnbar0.270.410.350.390.420.46

    ModelsQXU35D6QXU47D6QXU56D6QXU65D8QXU80D8QXU95D8
    Dimension(mm)A127514071431143116311781
    B168168168168219219
    C107107161161200200
    D104011901030118013801530
    E200200200240240240
    VentS11/21/21/21/21/21/2
    OutletS21/21/21/21/21/21/2
    ConnectionW(DN)505050506565
    D1(mm)161622222222
    D2(mm)222235353535
    P(kg)72788893125136

    Qn-rated refrigerating capacity Wn-cooling water flow Wm-maximum cooling water flow

    Dpn-pressure drop of recirculating cooling water Dts-overheat temperature




    COOPERATED CLENTS
