    304L Stainless Steel Condenser With Brine Tube Medium , Brass Brazing Connection

    304L Stainless Steel Tube


    Heat Exchanger Water - Cooled Condenser

    1, Introduction:


    (1) The product is applicable to water chiller units, water source heat pump units etc.


    (2) Suitable refrigerants are R22, R134a, R407C, R410A etc.


    (3) Apply load cold agent for tap water, underground water, river water and sea water or brine, water and


    glycol solution, sulfate solution, etc.


    (4) For heat exchange tube, copper pipe, copper nickel alloy tube, aluminum brass tube, stainless steel


    tube, etc. Shell using seamless steel pipe, stainless steel tube, etc.

    2, Heat exchange tube: two main specifications.

    (1) ∅ within 5/8 "efficient copper pipe outside screw wing, ∅ 5/8" stainless steel pipe.

    (2) the ∅ 3/4 "inside outside screw wing efficient copper tube, ∅ 3/4" stainless steel pipe

    3, Main material, the shell of 20 # seamless steel pipe, stainless steel pipe.

    4, Interface:


    The heat exchange tube uses copper pipe, nickel-copper alloy tubes, aluminum brass tube and stainless


    steel tube as the material and the shell uses No.20 seamless steel tube and stainless steel tube.


    CONDENSER SERIES SINGLE CIRCUIT


    CAPACITY: 3RT TO 15RT

    ModelRefrig. ton (RT)Refrig. ton (104kcal/h)Dimension (mm)Weight (kg)Max. water flow
    DT1TACE
    QXC3S431.1341146357217514070232.5
    QXC5S551.8901406357217516570334
    QXC8S683.0241687628589018592496.5
    QXC10S6103.78016895310499018592587.8
    QXC12S6124.53616895310499018592629.6
    QXC15S6155.67016812701366100185927511.6

    ModelS (Vent)

    P (fluoride inlet)
    Copper pipe diameter (inch)

    L(fluoride outlet)
    Copper pipe diameter (inch)

    W (standard port)W (optional port)
    FPT(inner pipe thread)FPT(inner pipe thread)FPT(inner pipe thread)
    QXC3S41/45/85/813/4
    QXC5S51/45/85/81-1/21
    QXC8S61/47/85/81-1/21
    QXC10S61/47/85/81-1/21
    QXC12S61/41-1/87/81-1/21
    QXC15S61/41-1/87/81-1/21

    CONDENSER SERIES SINGLE CIRCUIT


    CAPACITY: 220RT TO 426RT


    ModelRefrig. ton (RT)Refrig. ton (104kcal/h)Dimension (mm)Weight (kg)Max. water flow
    DT1TACEH1H2
    QXC220S16A22078.5542628603326150530260310310730165.8
    QXC240S16A24081.6542628603326150530260310310763181
    QXC260S20A26084.3648032003666150530280310310802195.5
    QXC280S20A28088.2448032003666150530280400290841211
    QXC320S20A32095.2148032003666150600280400290912240.6
    QXC340S22A34098.6853035003966150600300400290963256
    QXC380S22A380106.53530350039661506503004002901015285.5
    QXC426S22A426115.62530380042661506503004002901088320

    ModelS (Vent)

    P (fluoride inlet)

    Copper pipe diameter (inch)

    L(fluoride outlet)

    Copper pipe diameter (inch)

    W (standard port)W (optional port)
    FPT(inner pipe thread)Male flangeMale flange
    QXC220S16A3/83-1/81-5/8DN125DN125
    QXC240S16A3/83-1/81-5/8DN125DN125
    QXC260S20A3/83-1/81-5/8DN125DN125
    QXC280S20A3/84-1/82-1/8DN150DN150
    QXC320S20A3/84-1/82-1/8DN150DN150
    QXC340S22A3/84-1/82-1/8DN150DN200
    QXC380S22A3/84-1/82-5/8DN200DN250
    QXC426S22A3/84-1/82-5/8DN200DN250

    CONDENSER SERIES DOUBLE CIRCUIT


    CAPACITY: 10RT TO 40RT


    ModelRefrig. ton (RT)Refrig. ton (104kcal/h)Dimension (mm)Weight (kg)Max. water flow
    DT1TACC2E
    QXC10D6103.7816848310657518523392787.8
    QXC15D6155.67168635136975185233928511.6
    QXC20D6207.56168819173790185233929615.8
    QXC25D6259.4521981917559023828511313219.5
    QXC30D63011.3421981917559023828511313723
    QXC35D63513.2321981917559023828511314527.3
    QXC40D64015.1221995320249023828511316231

    ModelS (Vent)

    P (fluoride inlet)

    Copper pipe diameter (inch)

    L(fluoride outlet)

    Copper pipe diameter (inch)

    W (standard port)
    FPT(inner pipe thread)FPT(inner pipe thread)
    QXC10D61/45/85/81-1/2
    QXC15D61/47/85/81-1/2
    QXC20D61/47/85/81-1/2
    QXC25D61/41-1/87/82
    QXC30D61/41-1/87/82-1/2
    QXC35D61/41-3/87/82-1/2
    QXC40D61/41-3/87/82-1/2

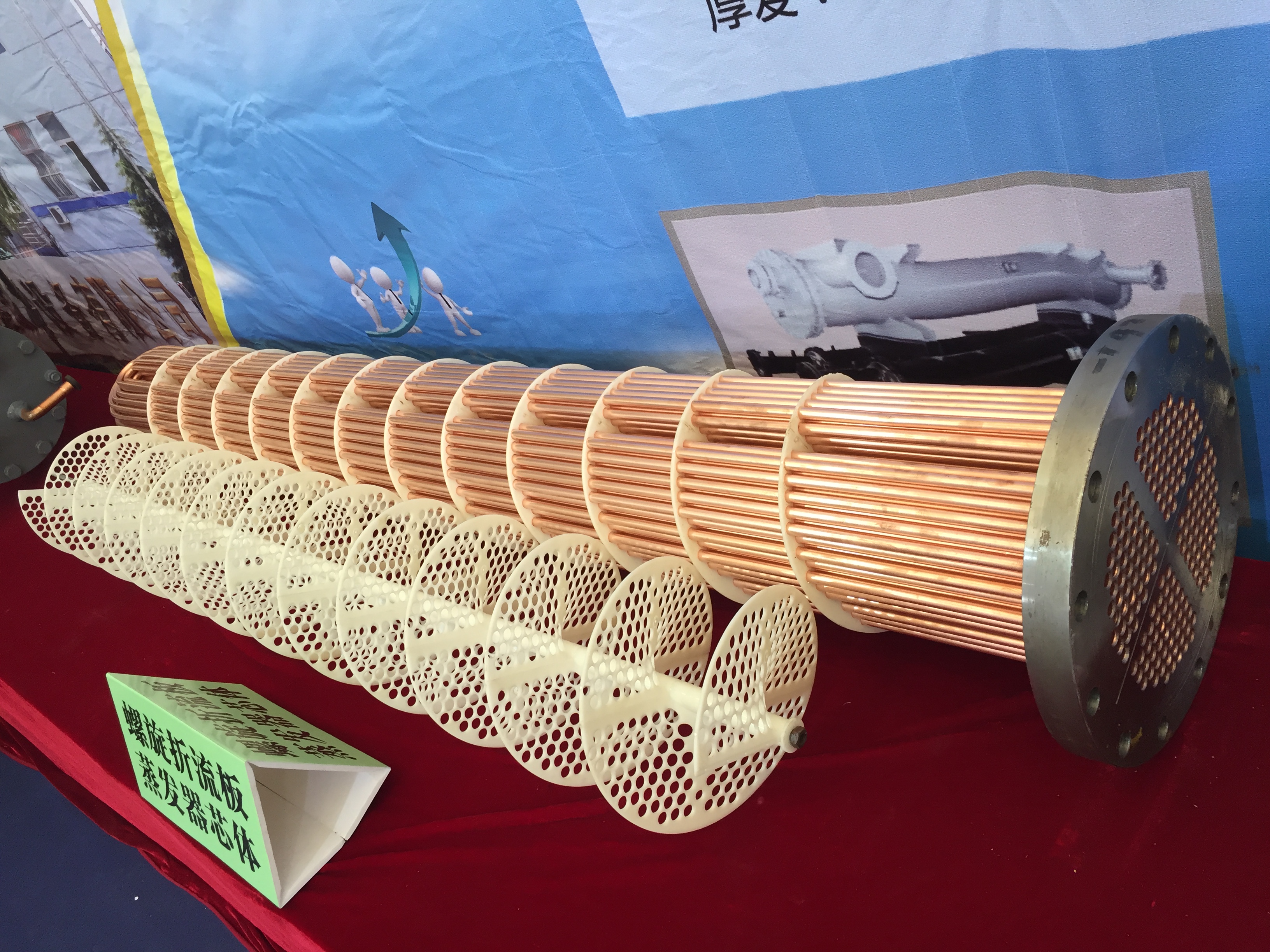

    STRAIGHT SINGLE SERIES DRY SPIRAL BAFFLE PLATE EVAPORATOR


    (DOUBLE CIRCUIT) CAPACITY: 320KW TO 680KW


    ModelsRE320D10RE360D12RE420D12RE470D12RE540D14RE620D14RE680D14

    Rated data

    Refrigerant R22

    ti=12°C te=2°C

    tu=7°C Dts=5°C

    QnKW320360420470540620680

    Kcal/h

    (×103 )

    267317361404464533585
    Wnm3 /h53.36272.280.893107116
    Wmm3 /h687081.7100105140145
    Dpnbar0.430.430.350.460.410.470.49

    ModelsRE320D10RE360D12RE420D12RE470D12RE540D14RE620D14RE680D14
    Dimension(mm)A140140150150150170170
    B273273325325355377377
    C2500169024001500269026902860
    D360360406406440460460
    E370370380380400400400
    F2586258624882586277627762946
    VentS11/21/21/21/21/21/21/2
    OutletS21/21/21/21/21/21/21/2
    ConnectionW(DN)100100125125125150150
    D1(mm)35354242424242
    D2(mm)67678080909090
    P(kg)296380398442459654669

    Qn-rated refrigerating capacity Wn-cooling water flow Wm-maximum cooling water flow

    Dpn-pressure drop of recirculating cooling water Dts-overheat temperature
