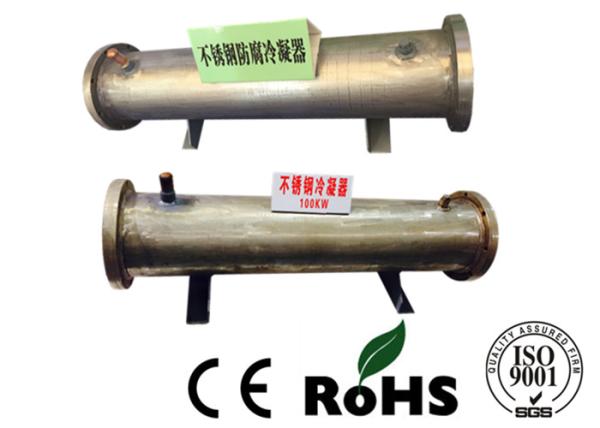

    Water Cooled Stainless Steel Condenser , Durable Shell In Tube Heat Exchanger

    Ask Lasest Price
    Brand Name : GREEFOUN
    Model Number : QXC75D6
    Certification : CE
    Payment Terms : TT, L/C, Western Union
    Supply Ability : 100000pieces/year
    Delivery Time : within 15days
    • Product Details
    • Company Profile

    Water Cooled Stainless Steel Condenser , Durable Shell In Tube Heat Exchanger

    Industrial water - Cooled Condenser


    Stainless Steel Tube Heat Exchanger


    1, Introduction:


    (1) The product is applicable to water chiller units, water source heat pump units etc.


    (2) Suitable refrigerants are R22, R134a, R407C, R410A etc.


    (3) Apply load cold agent for tap water, underground water, river water and sea water or brine, water and


    glycol solution, sulfate solution, etc.


    (4) For heat exchange tube, copper pipe, copper nickel alloy tube, aluminum brass tube, stainless steel


    tube, etc. Shell using seamless steel pipe, stainless steel tube, etc.


    2, Heat exchange tube: two main specifications.


    (1) ∅ within 5/8 "efficient copper pipe outside screw wing, ∅ 5/8" stainless steel pipe.


    (2) the ∅ 3/4 "inside outside screw wing efficient copper tube, ∅ 3/4" stainless steel pipe


    3, Main material, the shell of 20 # seamless steel pipe, stainless steel pipe.

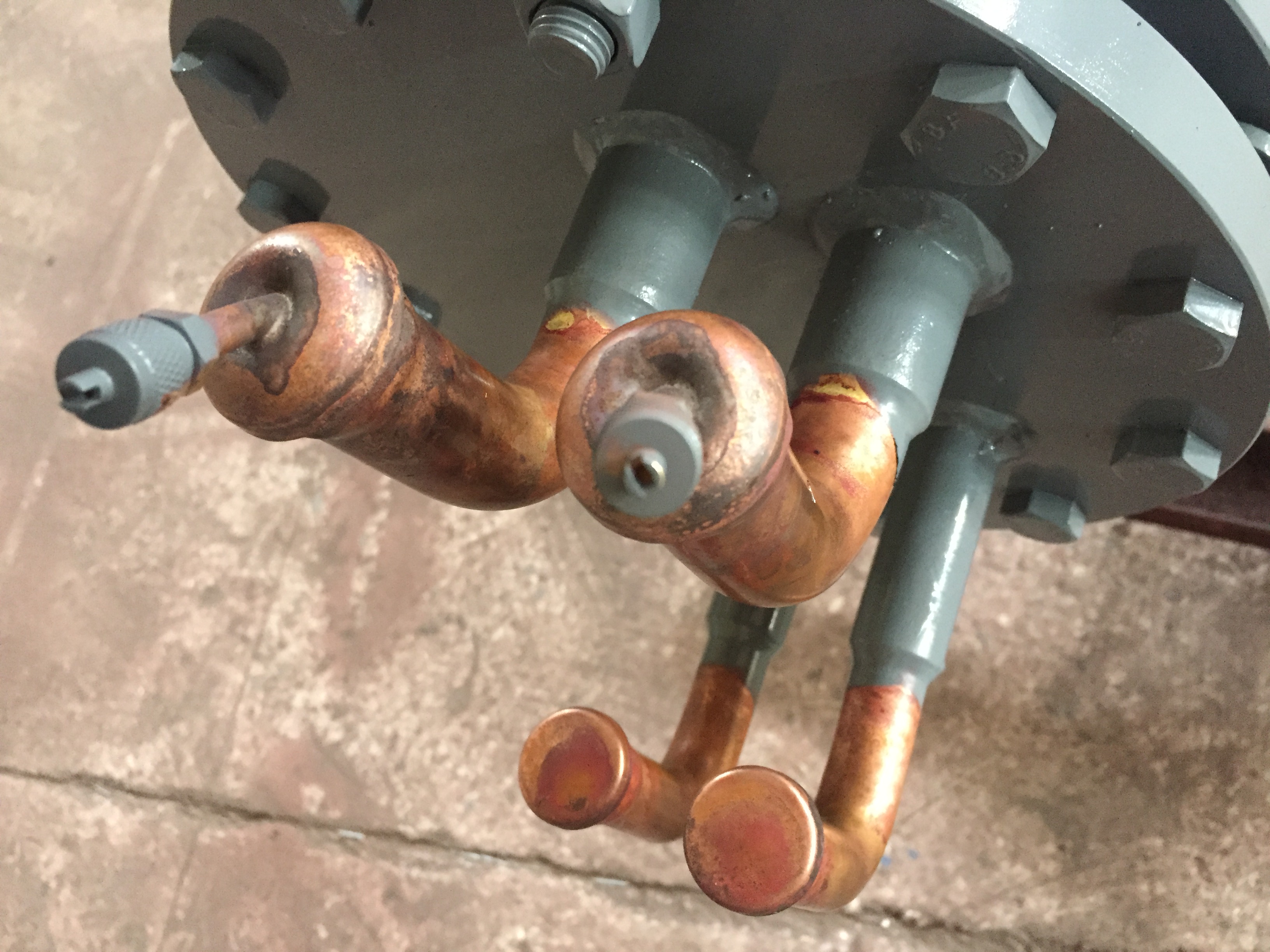

    4, Interface:


    CONDENSER SERIES SINGLE SYSTEM


    CAPACITY: 40RT TO 70RT


    ModelRefrig. ton (RT)Refrig. ton (104kcal/h)Dimension (mm)Weight (kg)Max. water flow
    DT1TACEH1H2
    QXC40S10A4015.122731600205312036015035024020431
    QXC45S10A4517.012731600205312036015035024021235
    QXC50S10A5018.902732032248512036015035024024038.5
    QXC55S10A5520.792732032248512036015035024024942.5
    QXC60S10A6022.682732032248512036015035024025646
    QXC65S10A6524.572732032248512036015035024026449.2
    QXC70S10A7026.462732032248512036015035024027053.5

    ModelS (Vent)

    P (fluoride inlet)

    Copper pipe diameter (inch)

    L(fluoride outlet)

    Copper pipe diameter (inch)

    W (standard port)W (optional port)
    FPT(inner pipe thread)Male flangeMale flange
    QXC40S10A3/81-5/81-1/8DN65DN65
    QXC45S10A3/81-5/81-1/8DN65DN65
    QXC50S10A3/81-5/81-1/8DN65DN80
    QXC55S10A3/81-5/81-1/8DN65DN80
    QXC60S10A3/81-5/81-3/8DN65DN80
    QXC65S10A3/81-5/81-3/8DN65DN80
    QXC70S10A3/82-1/81-3/8DN80DN80

    CONDENSER SERIES DOUBLE SYSTEM CAPACITY: 50RT TO 200RT


    ModelRefrig. ton (RT)Refrig. ton (104kcal/h)Dimension (mm)Weight (kg)Max. water flow
    DT1TACEH1H2
    QXC50D10A5018.927395323649036015035024026538.5
    QXC60D10A6022.6827395323649036015035024027946
    QXC70D12A7026.4632595323779040618035024035953.5
    QXC80D12A8030.2432595323779040618035024037561
    QXC100D12A10037.8032595323779040618035024040976
    QXC120D12A12045.363251270301112040618035024048191
    QXC140D14A14052.9235512703018120440200350240553106
    QXC160D16A16060.4842616003656120510260310310723120.6
    QXC200D16A20075.6042616003656120510260310310777150.8

    ModelS (Vent)

    P (fluoride inlet)

    Copper pipe diameter (inch)

    L(fluoride outlet)

    Copper pipe diameter (inch)

    W (standard port)
    FPT(inner pipe thread)Male flange
    QXC50D10A3/81-3/87/8DN65
    QXC60D10A3/81-5/81-1/8DN65
    QXC70D12A3/81-5/81-1/8DN80
    QXC80D12A3/81-5/81-1/8DN80
    QXC100D12A3/82-1/81-3/8DN100
    QXC120D12A3/82-1/81-3/8DN100

    GAS-LIQUID SEPARATOR


    CAPACITY 30L TO 120L


    ModelsLDimension (mm)Kg
    DABH1H2
    QXQF30L3035522022045050021
    QXQF40L4035522022060065026
    QXQF60L6042630030060065047
    QXQF80L8042630030080085058
    QXQF100L1004263603601000105076
    QXQF120L1204263603601200125097

    ModelsS (pipe thread)P1P2
    FPTPipe diameter (inch)Pipe diameter (inch)
    QXQF30L3/81-5/81-5/8
    QXQF40L3/81-5/81-5/8
    QXQF60L3/82-1/82-1/8
    QXQF80L3/82-1/82-1/8
    QXQF100L3/82-5/82-5/8
    QXQF120L3/83-1/83-1/8``
