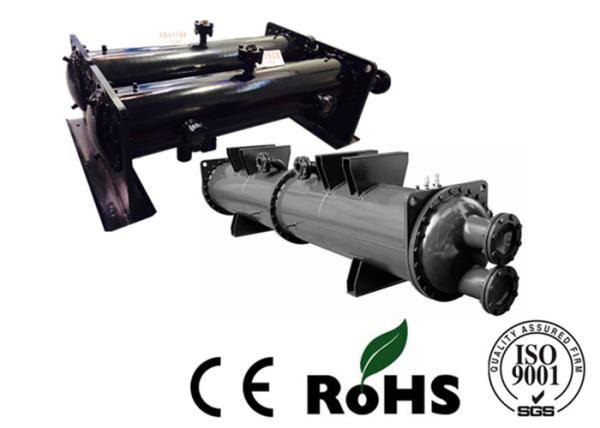

    Loose Flange Type Shell And Tube Heat Exchanger For Cooling Unit Using


    Loose Flange Type Shell And Tube Heat Exchanger For Cooling Unit Using


    The heat exchange vessel is a container for the heat exchange of the medium. Its wide variety.


    According to the heat transfer principle, the original heat transfer structure and strengthen the original


    heat transfer can be classified.


    According to the principle of heat transfer, heat transfer containers can be divided into two types of direct


    contact and indirect contact. Indirect contact subdivision is a common type of storage and direct transfer


    of heat plate, tube heat exchanger.


    Energy storage type heat exchanger energy storage structure is compact, cheap, unit volume heat


    transfer surface large. Suitable for gas-to-air exchange.


    At the same time if the two fluids do not allow a mixture, then, can not use regenerative heat exchanger.


    STRAIGHT SINGLE SERIES DRY SPIRAL BAFFLE PLATE EVAPORATOR


    CAPACITY: 310KW TO 680KW


    ModelsRE310S10RE360S12RE420S12RE470S12RE540S14RE620S14RE680S14

    Rated data

    Refrigerant R22

    ti=12°C te=2°C

    tu=7°C Dts=5°C

    QnKW310360420470540620680
    Kcal/h(×103 )267317361404464533585
    Wnm3 /h53.36272.280.893107116
    Wmm3 /h687081.7100105140145
    Dpnbar0.430.430.350.460.410.470.49

    ModelsRE310S10RE360S12RE420S12RE470S12RE540S14RE620S14RE680S14
    Dimension(mm)A140140150150150170170
    B273273325325355377377
    C2500169024001500269026902860
    D360360406406440460460
    E370370380380400400400
    F2586258624882586277627762946
    VentS11/21/21/21/21/21/21/2
    OutletS21/21/21/21/21/21/21/2
    ConnectionW(DN)100100125125125150150
    D1(mm)35354242424242
    D2(mm)67678080909090
    P(kg)296380398442459654669

    Qn-rated refrigerating capacity Wn-cooling water flow Wm-maximum cooling water flow

    Dpn-pressure drop of recirculating cooling water Dts-overheat temperature


    CONDENSER SERIES SINGLE CIRCUIT


    CAPACITY: 40RT TO 70RT


    ModelRefrig. ton (RT)Refrig. ton (104kcal/h)Dimension (mm)Weight (kg)Max. water flow
    DT1TACEH1H2
    QXC40S10A4015.122731600205312036015035024020431
    QXC45S10A4517.012731600205312036015035024021235
    QXC50S10A5018.902732032248512036015035024024038.5
    QXC55S10A5520.792732032248512036015035024024942.5
    QXC60S10A6022.682732032248512036015035024025646
    QXC65S10A6524.572732032248512036015035024026449.2
    QXC70S10A7026.462732032248512036015035024027053.5

    ModelS (Vent)

    P (fluoride inlet)

    Copper pipe diameter (inch)

    L(fluoride outlet)

    Copper pipe diameter (inch)

    W (standard port)W (optional port)
    FPT(inner pipe thread)Male flangeMale flange
    QXC40S10A3/81-5/81-1/8DN65DN65
    QXC45S10A3/81-5/81-1/8DN65DN65
    QXC50S10A3/81-5/81-1/8DN65DN80
    QXC55S10A3/81-5/81-1/8DN65DN80
    QXC60S10A3/81-5/81-3/8DN65DN80
    QXC65S10A3/81-5/81-3/8DN65DN80
    QXC70S10A3/82-1/81-3/8DN80DN80

    CONDENSER SERIES SINGLE CIRCUIT


    CAPACITY: 75RT TO 100RT


    ModelRefrig. ton (RT)Refrig. ton (104kcal/h)Dimension (mm)Weight (kg)Max. water flow
    DT1TACEH1H2
    QXC75S12A7528.3503252032248512036018035024033557.2
    QXC80S12A8030.2403252032248512040618035024034361
    QXC85S12A8532.1303252032248512040618035024035064.1
    QXC90S12A9034.0203252032248512040618035024036468
    QXC95S12A9535.9103252032248512040618035024037272.1
    QXC100S12A10037.8003252500296612040618035024037976

    ModelS (Vent)

    P (fluoride inlet)

    Copper pipe diameter (inch)

    L(fluoride outlet)

    Copper pipe diameter (inch)

    W (standard port)W (optional port)
    FPT(inner pipe thread)Male flangeMale flange
    QXC75S12A3/82-1/81-3/8DN80DN100
    QXC80S12A3/82-1/81-3/8DN80DN100
    QXC85S12A3/82-5/81-3/8DN100DN100
    QXC90S12A3/82-5/81-3/8DN100DN100
    QXC95S12A3/82-5/81-3/8DN100DN100
    QXC100S12A3/83-1/81-5/8DN100DN100
