    Double Circuit Shell And Tube Evaporator With River Water Referigerating Medium

    Ask Lasest Price
    Brand Name : GREEFOUN
    Model Number : QXU28S5
    Certification : CE
    Payment Terms : TT, L/C, Western Union
    Supply Ability : 100000pieces/year
    Delivery Time : within 15days
    • Product Details
    • Company Profile

    Double Circuit Shell And Tube Evaporator With River Water Referigerating Medium

    Double Circuit Shell and Tube Evaporator


    Water - Cooled Heat Exchanger



    Double Circuit Shell and Tube Evaporator Water - Cooled Heat Exchanger is suitable for water cooled


    unit, water source heat pump, air cooled pump and air cooled heat pump unit.

    The product is applying for refrigerants of R22, R134a, R407C and R410A etc.

    The referigerating medium is for tap water, underground water, river water and sea water or brine, water

    and glycol solution, sulfate solution, etc.

    For heat exchange tube, copper pipe, copper nickel alloy tube, aluminum brass tube, stainless steel tube,

    etc. The shell raw material mainly are seamless steel tube, stainless steel pipe.


    1, Heat exchange tube: four main tube type.

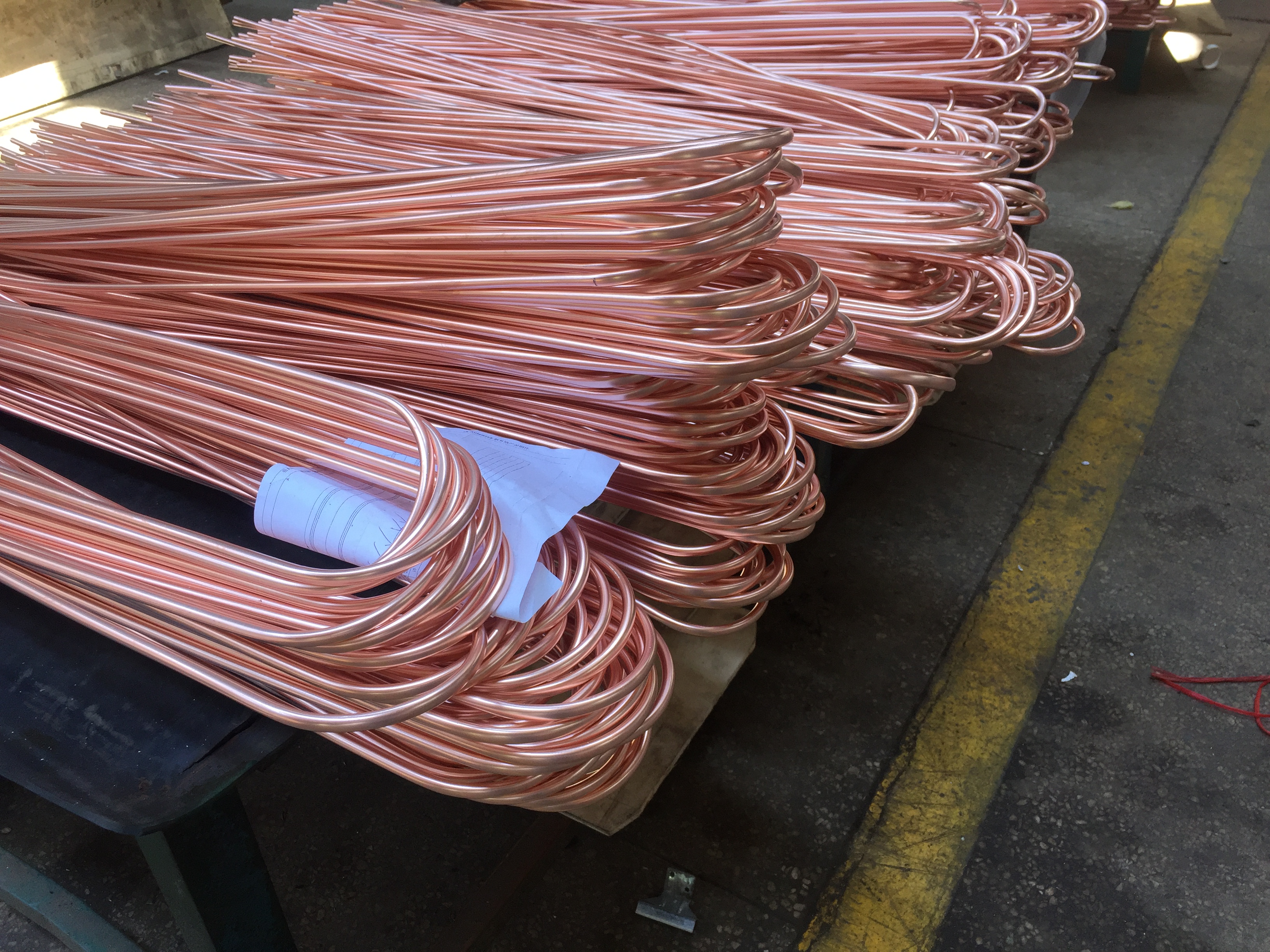

    (1) ∅ within 3/8 "thread copper coil, it is mainly used for" U "type tube evaporator.

    (2) ∅ within 1/2 "threaded straight copper tube, straight tube is mainly used for dry-type evaporator.

    (3) ∅ 1/2 "corrugated straight stainless steel tube, straight tube is mainly used in food industry of dry

    evaporator.

    (4) ∅ 5/8 "inside outside screw wing efficient copper tube, it is mainly used for air precooling industry dry

    evaporator.

    2, shell raw material:

    There are two of the major materials:

    (1) # 20 seamless steel tube, mainly used for all kinds of load - more than 20 ℃ cold agent.

    (2) 304/316 l stainless steel tube, it is mainly used for food and low temperature (below 25 ℃, higher than

    40 ℃) of the refrigerant, 316 l can also be used for cooling load of the sulfate for industry.

    3, interface:

    U SHAPED TUBE DRY EVAPORATOR (SINGLE CIRCUIT)


    CAPACITY: 18KW TO 95KW


    ModelsQXU18S5QXU28S5QXU35S6QXU47S6QXU56S6QXU65S6QXU80S8QXU95S8

    Rated data

    Refrigerant R22

    ti=12°C te=2°C

    tu=7°C Dts=5°C

    QnKW18.628.235.14756658095
    Kcal/h(×103 )162430.240.448.256.768.881.7
    Wnm3 /h46689.611.413.816.4
    Wmm3 /h6.381011.41214.51821
    Dpnbar0.160.290.270.410.350.390.420.46

    ModelsQXU18S5QXU28S5QXU35S6QXU47S6QXU56S6QXU65S6QXU80S8QXU95S8
    Dimension(mm)A8871037127514071431143116311781
    B140140168168168168219219
    C9797107107161161161161
    D690840104011901030118013801530
    E180180200200200200240240
    VentS11/21/21/21/21/21/21/21/2
    OutletS21/21/21/21/21/21/21/21/2
    ConnectionW(DN)4040505065656565
    D1(mm)2222222222222222
    D2(mm)3535353554545454
    P(kg)495872788893125136

    Qn-rated refrigerating capacity Wn-cooling water flow Wm-maximum cooling water flow

    Dpn-pressure drop of recirculating cooling water Dts-overheat temperature


    CONDENSER SERIES SINGLE SYSTEM


    CAPACITY: 40RT TO 70RT


    ModelRefrig. ton (RT)Refrig. ton (104kcal/h)Dimension (mm)Weight (kg)Max. water flow
    DT1TACEH1H2
    QXC40S10A4015.122731600205312036015035024020431
    QXC45S10A4517.012731600205312036015035024021235
    QXC50S10A5018.902732032248512036015035024024038.5
    QXC55S10A5520.792732032248512036015035024024942.5
    QXC60S10A6022.682732032248512036015035024025646
    QXC65S10A6524.572732032248512036015035024026449.2
    QXC70S10A7026.462732032248512036015035024027053.5

    ModelS (Vent)

    P (fluoride inlet)

    Copper pipe diameter (inch)

    L(fluoride outlet)

    Copper pipe diameter (inch)

    W (standard port)W (optional port)
    FPT(inner pipe thread)Male flangeMale flange
    QXC40S10A3/81-5/81-1/8DN65DN65
    QXC45S10A3/81-5/81-1/8DN65DN65
    QXC50S10A3/81-5/81-1/8DN65DN80
    QXC55S10A3/81-5/81-1/8DN65DN80
    QXC60S10A3/81-5/81-3/8DN65DN80
    QXC65S10A3/81-5/81-3/8DN65DN80
    QXC70S10A3/82-1/81-3/8DN80DN80
