    Spiral Baffle Plate Shell and Tube Heat Exchanger for Water Cooling Evaporator

    Ask Lasest Price
    Brand Name : GREEFOUN
    Model Number : QXU220D10
    Certification : CE
    Payment Terms : TT, L/C, Western Union
    Supply Ability : 100000pieces/year
    Delivery Time : within 15days
    • Product Details
    • Company Profile

    Spiral Baffle Plate Shell and Tube Heat Exchanger for Water Cooling Evaporator

    Spiral Baffle Plate Shell and Tube


    Heat Exchanger for Water Cooling Evaporator


    Shell and tube heat exchanger is set in a cylindrical shell of many parallel pipe (also known as tube


    bundle), so that hot and cold fluid from the tube space (called the tube) and tube space (called shell) For


    heat exchange. Shell and tube heat exchanger is currently the most widely used in a variety of heat


    transfer equipment in the dominant position.


    Shell and tube heat exchanger tube bundle through the tube plate fixed, the gap between the larger pipe,


    there will be no clogging phenomenon, therefore, long-term use will not reduce the heat exchanger heat


    transfer efficiency. Shell and tube heat exchanger fluid channel gap, the flow uniformity, to avoid the


    above "ice block" phenomenon occurs, to stable and safe operation.


    Shell and tube heat exchanger is a basic maintenance-free products, when the heat exchanger leaks can


    be used in a short time to restore the work performance, maintenance of less work.

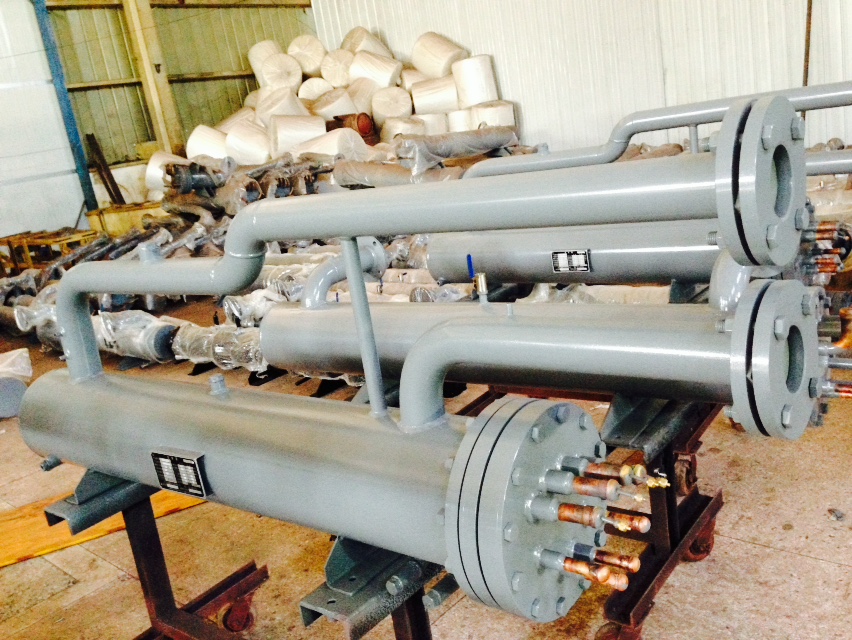

    U SHAPED TUBE DRY EVAPORATOR (DOUBLE CIRCUIT)


    CAPACITY: 120KW TO 310KW

    ModelsQXU120D8QXU135D8QXU155D8QXU185D10QXU220D10QXU270D10QXU310D10

    Rated data
    Refrigerant R22

    ti=12°C te=2°C

    tu=7°C Dts=5°C

    QnKW120135155185220270310
    Kcal/h(×103 )103.2116133.3159189232267
    Wnm3 /h20.623.226.731.837.846.453.3
    Wmm3 /h25283041436568
    Dpnbar0.410.440.370.360.430.420.43

    ModelsQXU120D8QXU135D8QXU155D8QXU185D10QXU220D10QXU270D10QXU310D10
    Dimension(mm)A1815211523152320232026542654
    B219219219219273273273
    C200200200200234234234
    D1530183020302000200022802280
    E240240240300300300300
    VentS11/21/21/21/21/21/21/2
    OutletS21/21/21/21/21/21/21/2
    ConnectionW(DN)89898989114114114
    D1(mm)22222222353535
    D2(mm)42424242545454
    P(kg)145155163232255279296

    Qn-rated refrigerating capacity Wn-cooling water flow Wm-maximum cooling water flow

    Dpn-pressure drop of recirculating cooling water Dts-overheat temperature
