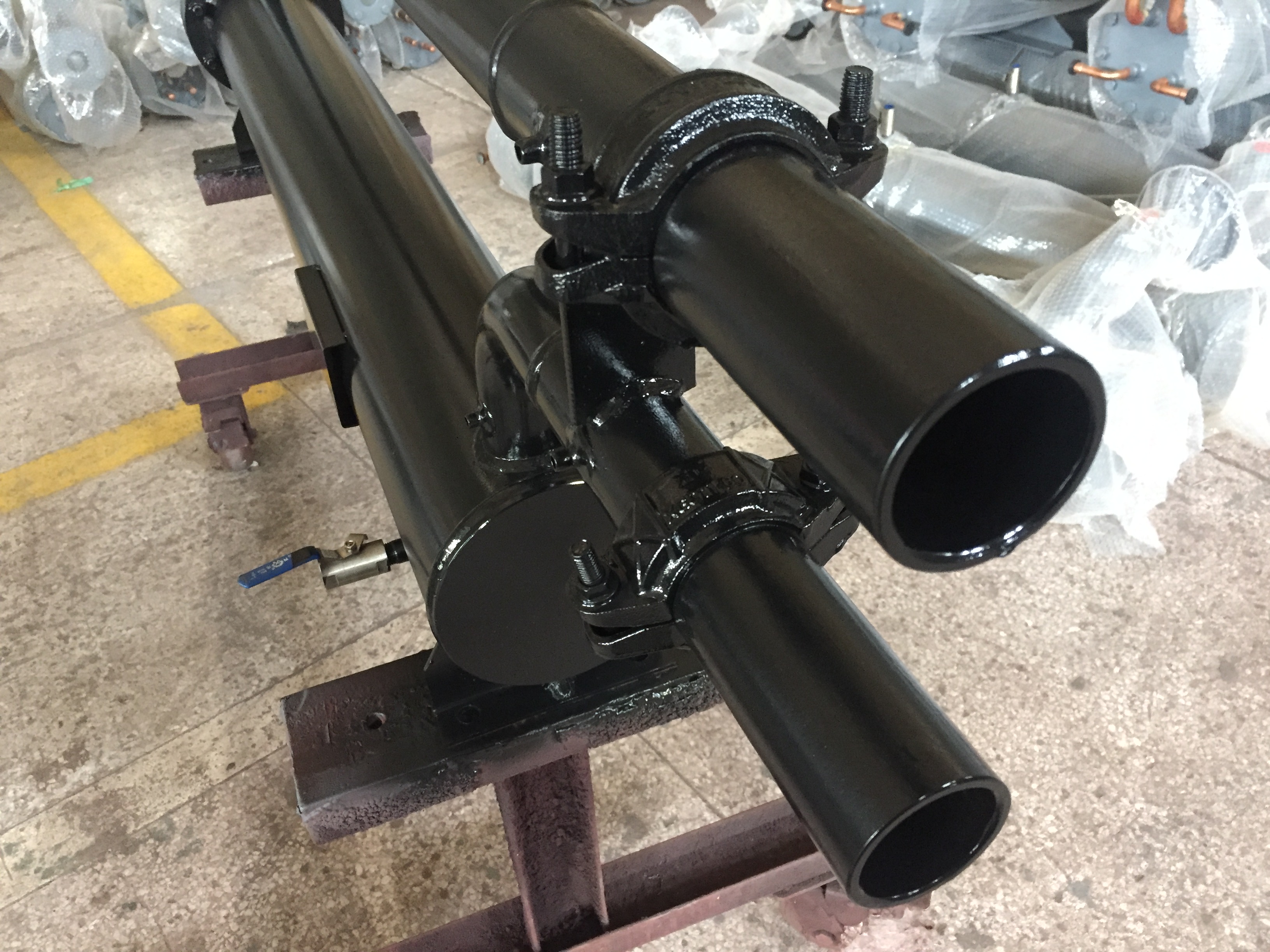

    Dry Type High Pressure Shell And Tube Heat Exchanger For Rooftop HVAC Units

    U - Shaped Dry Type


    Tube Heat Exchanger for Rooftop HVAC Units


    Dry Type High Pressure Shell And Tube Heat Exchanger For Rooftop HVAC Units from the shell, heat


    pipe bundle, tube plate, baffle (baffle) and the composition of the box and other components. The shell is


    mostly cylindrical, with tube bundles inside, tube ends fixed on the tube plate. Heat and heat of the two


    kinds of fluid, one in the tube flow, known as the pipeline fluid; another flow outside the tube, known as the


    shell process fluid. In order to improve the heat transfer coefficient of the fluid outside the tube, a number


    of baffles are usually installed in the housing. The baffle can increase the shell-side fluid velocity, forcing


    the fluid to pass through the tube bundle several times according to the specified path, and enhance the


    turbulence of the fluid. The heat transfer tubes may be arranged in equilateral triangles or squares on the


    tubesheet. The equilateral triangular arrangement is more compact, the turbulence of the tube is high,


    and the heat transfer coefficient is large. The square arrangement is convenient for cleaning outside the


    tube and is suitable for the fluid which is easy to scale.


    The fluid is once referred to as a pipe by pipe bundle once; every time the shell is once referred to as a


    shell side. Illustrated as the simplest single-shell single-tube heat exchanger, referred to as 1-1 heat


    exchanger. In order to improve the fluid velocity in the pipe, a partition plate can be provided at both ends


    of the pipe box, and all the pipes are divided into several groups. So that each time the fluid only through


    the part of the tube, and thus in the tube bundle back and forth many times, which is called multi-tube.


    Similarly, in order to improve the flow rate outside the tube can also be installed in the shell longitudinal


    baffle, forcing the fluid through the shell space several times, known as the multi-shell process. Multi-tube


    and multi-shell can be used in conjunction with the application.


    U SHAPED TUBE DRY EVAPORATOR (SINGLE CIRCUIT)


    CAPACITY: 120KW TO 270KW


    ModelsQXU120S8QXU135S8QXU155S8QXU185S10QXU220S10QXU270S10

    Rated data

    Refrigerant R22

    ti=12°C te=2°C

    tu=7°C Dts=5°C

    QnKW120135155185220270
    Kcal/h(×103 )103.2116133.3159180232
    Wnm3 /h20.323.226.731.837.846.4
    Wmm3 /h252830414365
    Dpnbar0.410.440.370.360.430.42

    ModelsQXU120S8QXU135S8QXU155S8QXU185S10QXU220S10QXU270S10
    Dimension(mm)A181521152315232026542654
    B219219219273273273
    C180180180200234234
    D153018302030200022802280
    E240240240300300300
    VentS11/21/21/21/21/21/2
    OutletS21/21/21/21/21/21/2
    ConnectionW(DN)808080100100100
    D1(mm)353535353535
    D2(mm)545467678080
    P(kg)145155163232279289

    Qn-rated refrigerating capacity Wn-cooling water flow Wm-maximum cooling water flow

    Dpn-pressure drop of recirculating cooling water Dts-overheat temperature


    U SHAPED TUBE DRY EVAPORATOR (DOUBLE CIRCUIT)


    CAPACITY: 120KW TO 310KW


    ModelsQXU120D8QXU135D8QXU155D8QXU185D10QXU220D10QXU270D10QXU310D10

    Rated data

    Refrigerant R22

    ti=12°C te=2°C

    tu=7°C Dts=5°C

    QnKW120135155185220270310
    Kcal/h(×103 )103.2116133.3159189232267
    Wnm3 /h20.623.226.731.837.846.453.3
    Wmm3 /h25283041436568
    Dpnbar0.410.440.370.360.430.420.43

    ModelsQXU120D8QXU135D8QXU155D8QXU185D10QXU220D10QXU270D10QXU310D10
    Dimension(mm)A1815211523152320232026542654
    B219219219219273273273
    C200200200200234234234
    D1530183020302000200022802280
    E240240240300300300300
    VentS11/21/21/21/21/21/21/2
    OutletS21/21/21/21/21/21/21/2
    ConnectionW(DN)89898989114114114
    D1(mm)22222222353535
    D2(mm)42424242545454
    P(kg)145155163232255279296

    Qn-rated refrigerating capacity Wn-cooling water flow Wm-maximum cooling water flow

    Dpn-pressure drop of recirculating cooling water Dts-overheat temperature


    CONDENSER SERIES SINGLE CIRCUIT


    CAPACITY: 220RT TO 426RT


    ModelRefrig. ton (RT)Refrig. ton (104kcal/h)Dimension (mm)Weight (kg)Max. water flow
    DT1TACEH1H2
    QXC220S16A22078.5542628603326150530260310310730165.8
    QXC240S16A24081.6542628603326150530260310310763181
    QXC260S20A26084.3648032003666150530280310310802195.5
    QXC280S20A28088.2448032003666150530280400290841211
    QXC320S20A32095.2148032003666150600280400290912240.6
    QXC340S22A34098.6853035003966150600300400290963256
    QXC380S22A380106.53530350039661506503004002901015285.5
    QXC426S22A426115.62530380042661506503004002901088320

    ModelS (Vent)

    P (fluoride inlet)

    Copper pipe diameter (inch)

    L(fluoride outlet)

    Copper pipe diameter (inch)

    W (standard port)W (optional port)
    FPT(inner pipe thread)Male flangeMale flange
    QXC220S16A3/83-1/81-5/8DN125DN125
    QXC240S16A3/83-1/81-5/8DN125DN125
    QXC260S20A3/83-1/81-5/8DN125DN125
    QXC280S20A3/84-1/82-1/8DN150DN150
    QXC320S20A3/84-1/82-1/8DN150DN150
    QXC340S22A3/84-1/82-1/8DN150DN200
    QXC380S22A3/84-1/82-5/8DN200DN250
    QXC426S22A3/84-1/82-5/8DN200DN250
