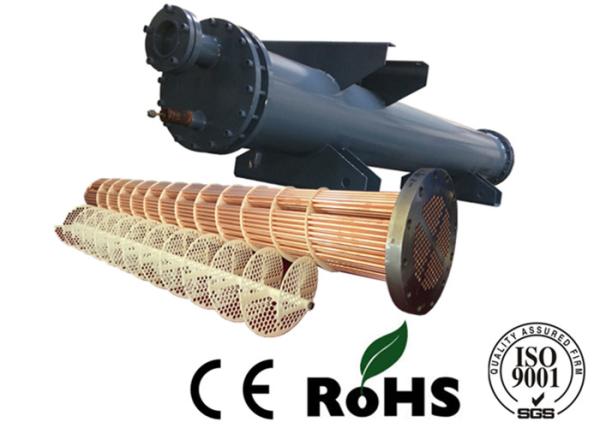

    Copper Tube Falling Film Evaporator R407c Refrigerant Commercial Cooling

    Ask Lasest Price
    Brand Name : GREEFOUN
    Model Number : MYZ140
    Certification : CE
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 100000pieces per year
    Delivery Time : within 15days
    • Product Details
    • Company Profile

    Copper Tube Falling Film Evaporator R407c Refrigerant Commercial Cooling

    R407c Falling Film Type


    Evaporator Tube Heat Exchanger for Water Chiller


    We produce R407c Falling Film Type Evaporator Tube Heat Exchanger for Water Chilller is applicable to


    water units, water source heat pump units, etc. Suitable refrigerants of R22, everything,, R407C, R410A,


    etc.


    Apply load cold agent for tap water, underground water, river water and sea water or brine, water and


    glycol solution, sulfate solution, etc.


    For heat exchange tube, copper pipe, copper nickel alloy tube, aluminum brass tube, stainless steel tube,


    etc. Shell using seamless steel pipe, stainless steel tube, etc.


    1, Heat exchange tube: there are two main specifications.


    (1) ∅ within 5/8 "efficient copper pipe outside screw wing, ∅ 5/8" stainless steel pipe.


    (2) the ∅ 3/4 "inside outside screw wing efficient copper tube, ∅ 3/4" stainless steel pipe


    Dry type spiral baffle plate evaporator, flooded evaporator, built-in oil separator condenser, sea water


    condenser, stainless steel heat exchanger, oil cooler


    The spiral baffle plate evaporator is the latest product designed and made by Qiaoxin and has obtained


    the national technical patents, which can save 20% in copper consumption and 30% in ferrous metals,


    reach the total energy saving rate 30% after test and satisfy the national economic policy of industrial


    upgrading, saving energy and reducing consumption and environmental protection.


    Falling film type shell and tube heat exchanger water-cooled evaporator


    Falling film type shell and tube heat exchanger water-cooled condenser


    U SHAPED TUBE DRY EVAPORATOR (SINGLE CIRCUIT)


    CAPACITY: 18KW TO 95KW


    ModelsQXU18S5QXU28S5QXU35S6QXU47S6QXU56S6QXU65S6QXU80S8QXU95S8

    Rated data

    Refrigerant R22

    ti=12°C te=2°C

    tu=7°C Dts=5°C

    QnKW18.628.235.14756658095

    Kcal/h

    (×103 )

    162430.240.448.256.768.881.7
    Wnm3 /h46689.611.413.816.4
    Wmm3 /h6.381011.41214.51821
    Dpnbar0.160.290.270.410.350.390.420.46

    ModelsQXU18S5QXU28S5QXU35S6QXU47S6QXU56S6QXU65S6QXU80S8QXU95S8
    Dimension(mm)A8871037127514071431143116311781
    B140140168168168168219219
    C9797107107161161161161
    D690840104011901030118013801530
    E180180200200200200240240
    VentS11/21/21/21/21/21/21/21/2
    OutletS21/21/21/21/21/21/21/21/2
    ConnectionW(DN)4040505065656565
    D1(mm)2222222222222222
    D2(mm)3535353554545454
    P(kg)495872788893125136

    Qn-rated refrigerating capacity Wn-cooling water flow Wm-maximum cooling water flow

    Dpn-pressure drop of recirculating cooling water Dts-overheat temperature


    STRAIGHT SINGLE SERIES DRY SPIRAL BAFFLE PLATE EVAPORATOR


    CAPACITY: 750KW TO 1500KW


    ModelsRE750S14RE900S16RE1100S16RE1240S20RE1360S20RE1420S20RE1500S20

    Rated data

    Refrigerant R22

    ti=12°C te=2°C

    tu=7°C Dts=5°C

    QnKW75090011001240136014201500

    Kcal/h

    (×103 )

    7008629831076116912581367
    Wnm3 /h121141168230252261289
    Wmm3 /h136158176261275309328
    Dpnbar0.480.540.480.400.460.490.58

    ModelsRE750S14RE900S16RE1100S16RE1240S20RE1360S20RE1420S20RE1500S20

    Dimension

    (mm)

    A170170170190190190190
    B377426426480480480480
    C3000286030002860286030003500
    D460530530600600600600
    E400450450500500500550
    F3086298431242984298431243624
    VentS11/21/21/21/21/21/21/2
    OutletS21/21/21/21/21/21/21/2
    ConnectionW(DN)150150150200200200200
    D1(mm)42424254(2)54(2)54(2)54(2)
    D2(mm)929292108108108108
    P(kg)7067538088639219921069

    Qn-rated refrigerating capacity Wn-cooling water flow Wm-maximum cooling water flow

    Dpn-pressure drop of recirculating cooling water Dts-overheat temperature


    CONDENSER SERIES SINGLE CIRCUIT


    CAPACITY: 110RT TO 200RT


    ModelRefrig. ton (RT)Refrig. ton (104kcal/h)Dimension (mm)Weight (kg)Max. water flow
    DT1TACEH1H2
    QXC110S12A11041.583252500296615040618035024041183.5
    QXC120S14A12045.363552500302315044020040029049091
    QXC130S14A13049.153552500302315044020040029050698.5
    QXC140S14A14052.9235525003023150440200400290521106
    QXC150S14A15056.7035525003023150440200400290536113.5
    QXC160S16A16060.4842625002952150530260310310637120.6
    QXC180S16A18068.0442625002952150530260310310667135.5
    QXC200S16A20075.6042625002952150530260310310697150.8

    ModelS (Vent)

    P (fluoride inlet)

    Copper pipe diameter (inch)

    L(fluoride outlet)

    Copper pipe diameter (inch)

    W (standard port)W (optional port)
    FPT(inner pipe thread)Male flangeMale flange
    QXC110S12A3/83-1/81-5/8DN100DN100
    QXC120S14A3/83-1/81-5/8DN100DN100
    QXC130S14A3/83-1/81-5/8DN100DN100
    QXC140S14A3/83-1/81-5/8DN100DN100
    QXC150S14A3/83-1/81-5/8DN100DN125
    QXC160S16A3/83-1/81-5/8DN125DN125
    QXC180S16A3/83-1/81-5/8DN125DN125
    QXC200S16A3/83-1/81-5/8DN125DN125


    COOPERATED CLENTS
