    Sea Water Stainless Steel Evaporator , U Tube Shell And Tube Heat Exchanger For Chiller

    Ask Lasest Price
    Brand Name : GREEFOUN
    Model Number : QXS35
    Certification : CE
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 100000pieces/year
    Delivery Time : within 15days
    • Product Details
    • Company Profile

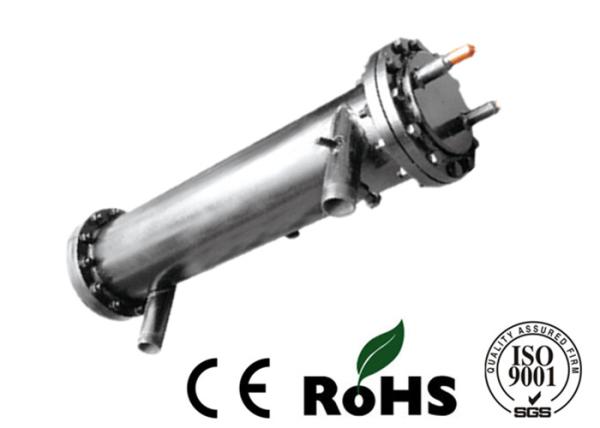

    Sea Water Stainless Steel Evaporator , U Tube Shell And Tube Heat Exchanger For Chiller

    Water Cooling Tube Heat Exchanger

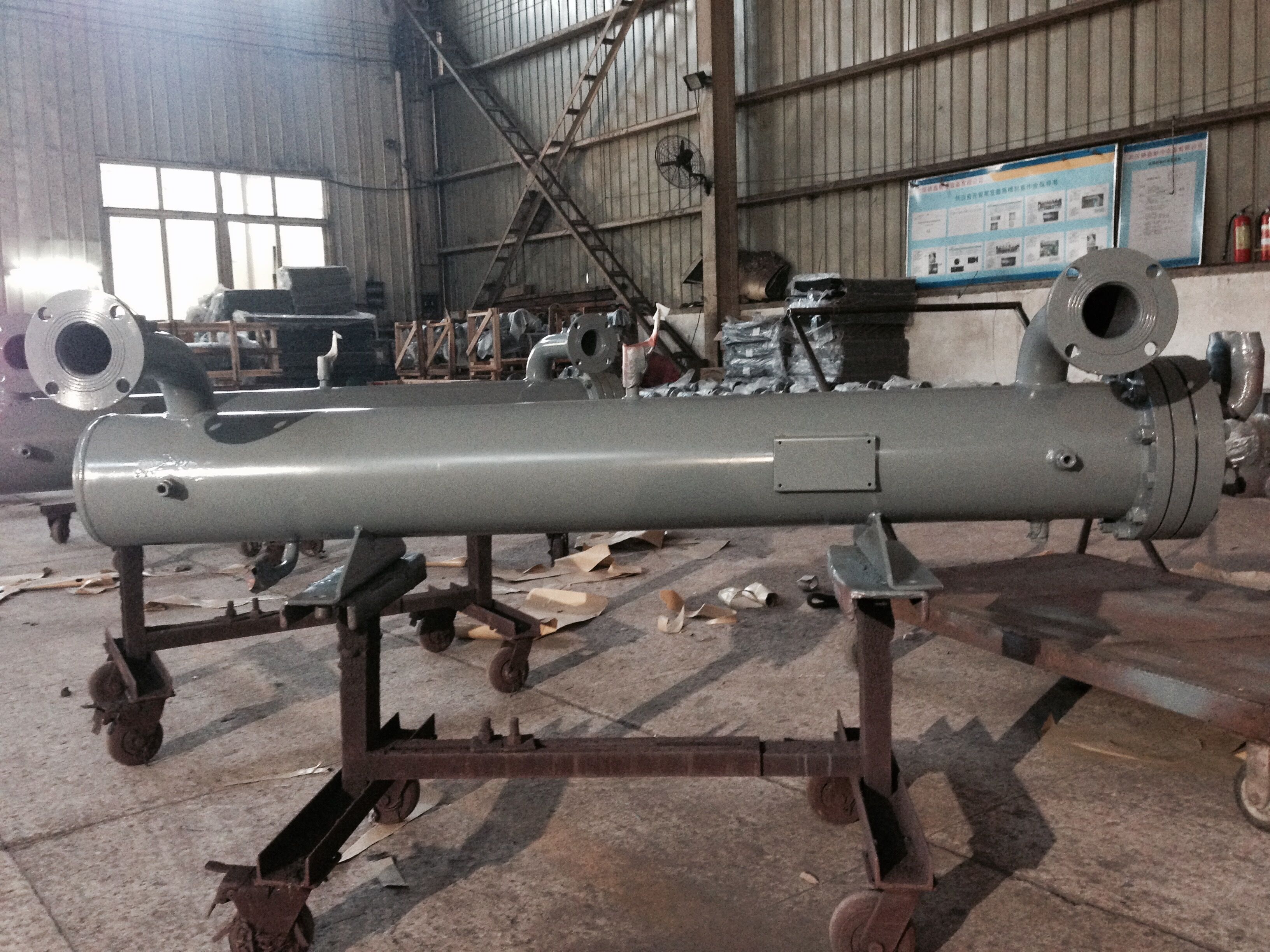

    Stainless Steel Evaporator for Chiller


    Stainless steel heat transfer tube has the following advantages:


     heat exchanger with 0.5-0.8mm thin-walled pipe to improve the overall heat transfer performance, in the


    same heat transfer area, the overall heat transfer coefficient than the copper increased 2.121-8.408%


     As the material used SUS304 high-quality stainless steel alloy, it has a high hardness, the pipe's steel is


    also significantly improved, therefore, has a strong impact resistance and anti-vibration performance.


     As the inner wall of the pipe is smooth, the thickness of the underlying laminar flow is thinned, which


    enhances the heat transfer and improves the anti-fouling performance.


     In order to eliminate the welding stress, in the protective gas to 1050 ℃ high temperature heat


    treatment.


     steel pipe are used to carry out leakage pressure check, air pressure test to 10MPa, 5 minutes without


    pressure drop.


    STAINLESS STEEL EVAPORATOR


    STRAIGHT SINGLE SERIES DRY SPIRAL BAFFLE PLATE EVAPORATOR


    CAPACITY: 750KW TO 1500KW


    ModelsRE750S14RE900S16RE1100S16RE1240S20RE1360S20RE1420S20RE1500S20

    Rated data

    Refrigerant R22

    ti=12°C te=2°C

    tu=7°C Dts=5°C

    QnKW75090011001240136014201500

    Kcal/h

    (×103 )

    7008629831076116912581367
    Wnm3 /h121141168230252261289
    Wmm3 /h136158176261275309328
    Dpnbar0.480.540.480.400.460.490.58

    ModelsRE750S14RE900S16RE1100S16RE1240S20RE1360S20RE1420S20RE1500S20

    Dimension

    (mm)

    A170170170190190190190
    B377426426480480480480
    C3000286030002860286030003500
    D460530530600600600600
    E400450450500500500550
    F3086298431242984298431243624
    VentS11/21/21/21/21/21/21/2
    OutletS21/21/21/21/21/21/21/2
    ConnectionW(DN)150150150200200200200
    D1(mm)42424254(2)54(2)54(2)54(2)
    D2(mm)929292108108108108
    P(kg)7067538088639219921069

    Qn-rated refrigerating capacity Wn-cooling water flow Wm-maximum cooling water flow

    Dpn-pressure drop of recirculating cooling water Dts-overheat temperature


    U SHAPED TUBE DRY EVAPORATOR (DOUBLE CIRCUIT)


    CAPACITY: 120KW TO 310KW


    ModelsQXU120D8QXU135D8QXU155D8QXU185D10QXU220D10QXU270D10QXU310

    Rated data

    Refrigerant R22

    ti=12°C te=2°C

    tu=7°C Dts=5°C

    QnKW120135155185220270310

    Kcal/h

    (×103 )

    103.2116133.3159189232267
    Wnm3 /h20.623.226.731.837.846.453.3
    Wmm3 /h25283041436568
    Dpnbar0.410.440.370.360.430.420.43

    ModelsQXU120D8QXU135D8QXU155D8QXU185D10QXU220D10QXU270D10QXU310D

    Dimension

    (mm)

    A1815211523152320232026542654
    B219219219219273273273
    C200200200200234234234
    D1530183020302000200022802280
    E240240240300300300300
    VentS11/21/21/21/21/21/21/2
    OutletS21/21/21/21/21/21/21/2
    ConnectionW(DN)89898989114114114
    D1(mm)22222222353535
    D2(mm)42424242545454
    P(kg)145155163232255279296

    Qn-rated refrigerating capacity Wn-cooling water flow Wm-maximum cooling water flow

    Dpn-pressure drop of recirculating cooling water Dts-overheat temperature


    CONDENSER SERIES SINGLE CIRCUIT


    CAPACITY: 75RT TO 100RT


    ModelRefrig. ton (RT)Refrig. ton (104kcal/h)Dimension (mm)Weight (kg)Max. water flow
    DT1TACEH1H2
    QXC75S12A7528.3503252032248512036018035024033557.2
    QXC80S12A8030.2403252032248512040618035024034361
    QXC85S12A8532.1303252032248512040618035024035064.1
    QXC90S12A9034.0203252032248512040618035024036468
    QXC95S12A9535.9103252032248512040618035024037272.1
    QXC100S12A10037.8003252500296612040618035024037976

    ModelS (Vent)

    P (fluoride inlet)

    Copper pipe diameter (inch)

    L(fluoride outlet)

    Copper pipe diameter (inch)

    W (standard port)W (optional port)
    FPT(inner pipe thread)Male flangeMale flange
    QXC75S12A3/82-1/81-3/8DN80DN100
    QXC80S12A3/82-1/81-3/8DN80DN100
    QXC85S12A3/82-5/81-3/8DN100DN100
    QXC90S12A3/82-5/81-3/8DN100DN100
    QXC95S12A3/82-5/81-3/8DN100DN100
    QXC100S12A3/83-1/81-5/8DN100DN100
