    Anti - Corrosion Shell And Tube Water Cooling Heat Exchanger Evaporator

    Ask Lasest Price
    Brand Name : GREEFOUN
    Model Number : QXS45
    Certification : CE
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 100000pieces/year
    Delivery Time : within 15days
    • Product Details
    • Company Profile

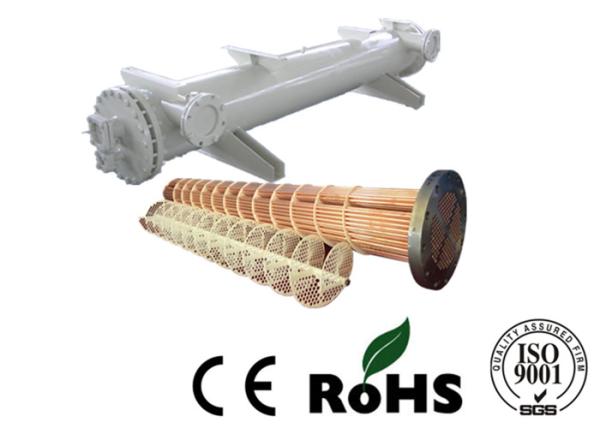

    Anti - Corrosion Shell And Tube Water Cooling Heat Exchanger Evaporator

    Anti-Corrosion Evaporator


    Shell and Tube Water Cooling Heat Exchanger


    Many types of evaporators are used, and a large part of the evaporator is mainly used to cool the air, that


    is, surface cooling evaporator; there are a small part of the evaporator used to cool the water, that is,


    chillers.


    1. Evaporator for cooling air (surface-cooled evaporator) 1) The working principle of surface-cooled


    evaporator.


    The process of surface-cooled evaporator is a vaporization endothermic process. Refrigerant after the


    throttling process, a gas-liquid mixture, but the liquid accounted for the majority.


    After the pressure of the refrigerant liquid flow in the evaporator, the intense heat-absorbing vaporization,


    known as boiling, this step is to obtain the cooling effect of the thermal process, is the ultimate goal of the


    refrigeration system, the process in the evaporator , After which the refrigerant becomes gaseous and


    then compressed into the air condensation process.


    The heat absorbed by the evaporator comes from two parts: the sensible heat released by the cooling air


    and the latent heat released from the condensation of water vapor in the air.


    In other words, the cooling capacity of the air conditioner is used to reduce the temperature of the air to


    be cooled and the other for the condensation (dehumidification) of the water vapor in the air.


    U SHAPED TUBE DRY EVAPORATOR (SINGLE CIRCUIT)


    CAPACITY: 120KW TO 270KW


    ModelsQXU120S8QXU135S8QXU155S8QXU185S10QXU220S10QXU270S10

    Rated data

    Refrigerant R22

    ti=12°C te=2°C

    tu=7°C Dts=5°C

    QnKW120135155185220270
    Kcal/h(×103 )103.2116133.3159180232
    Wnm3 /h20.323.226.731.837.846.4
    Wmm3 /h252830414365
    Dpnbar0.410.440.370.360.430.42

    ModelsQXU120S8QXU135S8QXU155S8QXU185S10QXU220S10QXU270S10
    Dimension(mm)A181521152315232026542654
    B219219219273273273
    C180180180200234234
    D153018302030200022802280
    E240240240300300300
    VentS11/21/21/21/21/21/2
    OutletS21/21/21/21/21/21/2
    ConnectionW(DN)808080100100100
    D1(mm)353535353535
    D2(mm)545467678080
    P(kg)145155163232279289

    Qn-rated refrigerating capacity Wn-cooling water flow Wm-maximum cooling water flow

    Dpn-pressure drop of recirculating cooling water Dts-overheat temperature


    U SHAPED TUBE DRY EVAPORATOR (DOUBLE CIRCUIT)


    CAPACITY: 120KW TO 310KW


    ModelsQXU120D8QXU135D8QXU155D8QXU185D10QXU220D10QXU270QXU310

    Rated data

    Refrigerant R22

    ti=12°C te=2°C

    tu=7°C Dts=5°C

    QnKW120135155185220270310

    Kcal/h

    (×103 )

    103.2116133.3159189232267
    Wnm3 /h20.623.226.731.837.846.453.3
    Wmm3 /h25283041436568
    Dpnbar0.410.440.370.360.430.420.43

    ModelsQXU120D8QXU135D8QXU155D8QXU185D10QXU220D10QXU270QXU310

    Dimension

    (mm)

    A1815211523152320232026542654
    B219219219219273273273
    C200200200200234234234
    D1530183020302000200022802280
    E240240240300300300300
    VentS11/21/21/21/21/21/21/2
    OutletS21/21/21/21/21/21/21/2
    ConnectionW(DN)89898989114114114
    D1(mm)22222222353535
    D2(mm)42424242545454
    P(kg)145155163232255279296

    Qn-rated refrigerating capacity Wn-cooling water flow Wm-maximum cooling water flow

    Dpn-pressure drop of recirculating cooling water Dts-overheat temperature


    CONDENSER SERIES SINGLE CIRCUIT


    CAPACITY: 40RT TO 70RT


    ModelRefrig. ton (RT)Refrig. ton (104kcal/h)Dimension (mm)Weight (kg)Max. water flow
    DT1TACEH1H2
    QXC40S10A4015.122731600205312036015035024020431
    QXC45S10A4517.012731600205312036015035024021235
    QXC50S10A5018.902732032248512036015035024024038.5
    QXC55S10A5520.792732032248512036015035024024942.5
    QXC60S10A6022.682732032248512036015035024025646
    QXC65S10A6524.572732032248512036015035024026449.2
    QXC70S10A7026.462732032248512036015035024027053.5

    ModelS (Vent)

    P (fluoride inlet)

    Copper pipe diameter (inch)

    L(fluoride outlet)

    Copper pipe diameter (inch)

    W (standard port)W (optional port)
    FPT(inner pipe thread)Male flangeMale flange
    QXC40S10A3/81-5/81-1/8DN65DN65
    QXC45S10A3/81-5/81-1/8DN65DN65
    QXC50S10A3/81-5/81-1/8DN65DN80
    QXC55S10A3/81-5/81-1/8DN65DN80
    QXC60S10A3/81-5/81-3/8DN65DN80
    QXC65S10A3/81-5/81-3/8DN65DN80
    QXC70S10A3/82-1/81-3/8DN80DN80

    CONDENSER SERIES DOUBLE CIRCUIT


    CAPACITY: 10RT TO 40RT


    ModelRefrig. ton (RT)Refrig. ton (104kcal/h)Dimension (mm)Weight (kg)Max. water flow
    DT1TACC2E
    QXC10D6103.7816848310657518523392787.8
    QXC15D6155.67168635136975185233928511.6
    QXC20D6207.56168819173790185233929615.8
    QXC25D6259.4521981917559023828511313219.5
    QXC30D63011.3421981917559023828511313723
    QXC35D63513.2321981917559023828511314527.3
    QXC40D64015.1221995320249023828511316231

    ModelS (Vent)

    P (fluoride inlet)

    Copper pipe diameter (inch)

    L(fluoride outlet)

    Copper pipe diameter (inch)

    W (standard port)
    FPT(inner pipe thread)FPT(inner pipe thread)
    QXC10D61/45/85/81-1/2
    QXC15D61/47/85/81-1/2
    QXC20D61/47/85/81-1/2
    QXC25D61/41-1/87/82
    QXC30D61/41-1/87/82-1/2
    QXC35D61/41-3/87/82-1/2
    QXC40D61/41-3/87/82-1/2
