    Dry Type Tube Condensing Unit , Vertical Flooded Type Evaporator For Chemical Industrial

    Ask Lasest Price
    Brand Name : GREEFOUN
    Model Number : QXU75S8
    Certification : CE
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 100000pieces/year
    Delivery Time : within 15days
    • Product Details
    • Company Profile

    Dry Type Tube Condensing Unit , Vertical Flooded Type Evaporator For Chemical Industrial

    Tube Condensing Unit Anti Corrosion

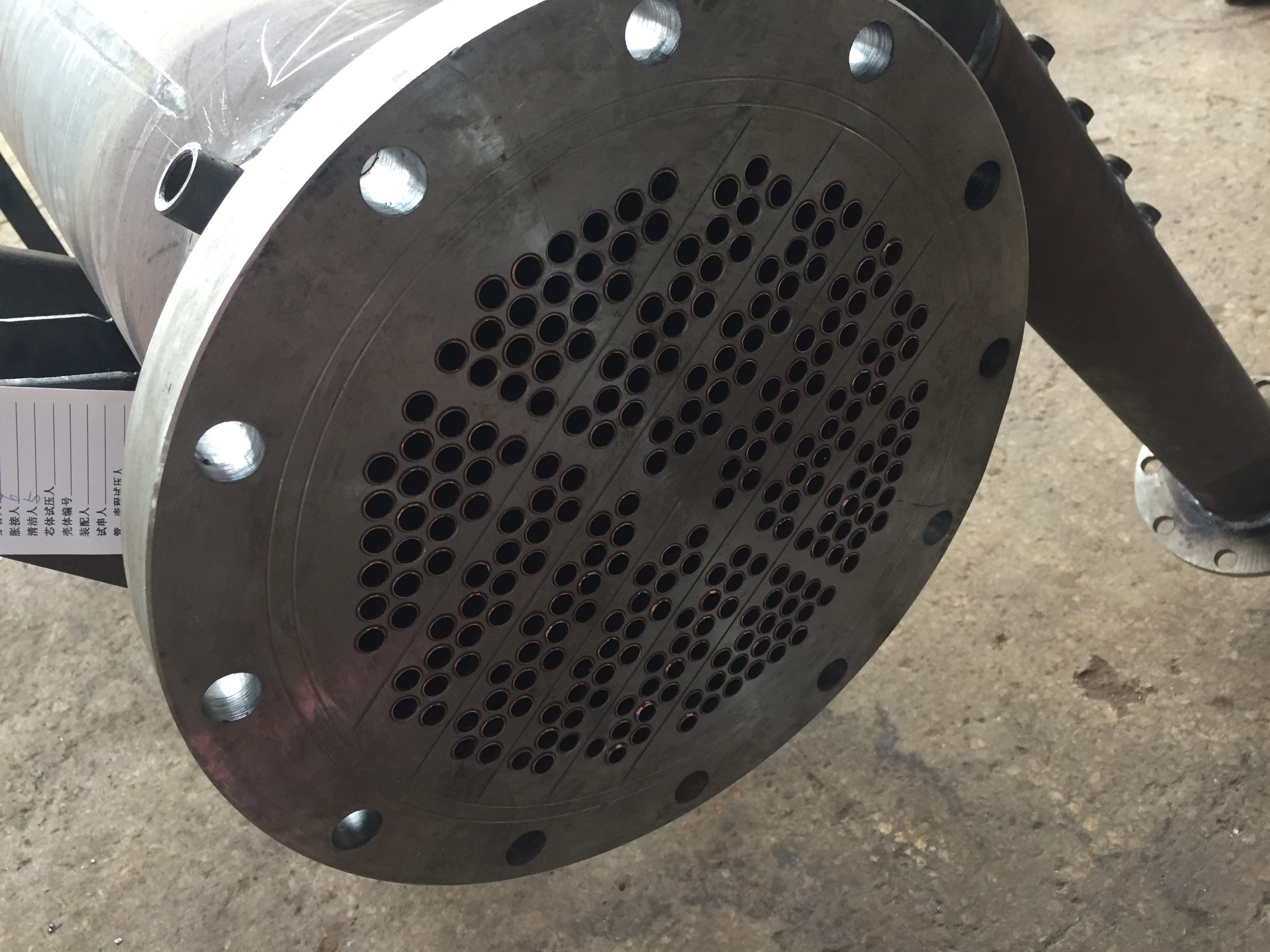

    Stainless Steel Heat Exchanger


    Stainless steel heat exchanger and brass heat exchanger difference between the stainless steel heat


    exchanger and brass heat exchanger difference between the stainless steel heat exchanger and brass


    heat exchanger is not the biggest difference between the heat transfer performance, corrosion resistance


    is good or bad, But the brass is more difficult than the stainless steel pipe fouling, which is not aware of


    the Chinese people.


    To give a simple example, foreign commercial boilers are not water treatment equipment, but life is up to


    15 years. The reason is that although the water can also produce scale in the copper pipe wall, but it is


    only flocculent scale, in this case, as long as the increase in water flow rate, scale can not precipitate


    down. Second, it is heat transfer performance.


    The thermal conductivity of copper is higher than that of stainless steel, so the heat transfer coefficient of


    brass in the same shape is higher than that of stainless steel tube. So the evaporator in the evaporator


    with the heat transfer tubes are basically made of copper.


    Third, the strength of stainless steel than copper higher, so now we see the plate heat exchanger plate is


    stainless steel, but the original plate is copper.


    OIL COOLER


    CAPACITY 3RT TO 40RT


    ModelRefrig. ton (RT)Refrig. ton (104kcal/h)Dimension (mm)Weight (kg)
    DT1TACE
    QXCF3S431.134114635721751407023
    QXCF5S551.189140635721751657033
    QXCF8S683.024168762858901859249
    QXCF10S6103.7801689531049901859258
    QXCF12S6124.5361689531049901859262
    QXCF15S6155.670168127013661001859275

    ModelS (Oil vent)

    P1 (inlet/outlet oil vent)

    Copper pipe external diameter (inch)

    W (inlet/outlet water vent)
    FPT(inner pipe thread)FPT(inner pipe thread)
    QXCF3S41/25/81
    QXCF5S51/25/81-1/2
    QXCF8S61/27/81-1/2
    QXCF10S61/27/81-1/2
    QXCF12S61/21-1/81-1/2
    QXCF15S61/21-1/81-1/2

    CONDENSER SERIES SINGLE CIRCUIT


    CAPACITY: 40RT TO 70RT


    ModelRefrig. ton (RT)Refrig. ton (104kcal/h)Dimension (mm)Weight (kg)Max. water flow
    DT1TACEH1H2
    QXC40S10A4015.122731600205312036015035024020431
    QXC45S10A4517.012731600205312036015035024021235
    QXC50S10A5018.902732032248512036015035024024038.5
    QXC55S10A5520.792732032248512036015035024024942.5
    QXC60S10A6022.682732032248512036015035024025646
    QXC65S10A6524.572732032248512036015035024026449.2
    QXC70S10A7026.462732032248512036015035024027053.5

    ModelS (Vent)

    P (fluoride inlet)

    Copper pipe diameter (inch)

    L(fluoride outlet)

    Copper pipe diameter (inch)

    W (standard port)W (optional port)
    FPT(inner pipe thread)Male flangeMale flange
    QXC40S10A3/81-5/81-1/8DN65DN65
    QXC45S10A3/81-5/81-1/8DN65DN65
    QXC50S10A3/81-5/81-1/8DN65DN80
    QXC55S10A3/81-5/81-1/8DN65DN80
    QXC60S10A3/81-5/81-3/8DN65DN80
    QXC65S10A3/81-5/81-3/8DN65DN80
    QXC70S10A3/82-1/81-3/8DN80DN80

    CONDENSER SERIES SINGLE CIRCUIT


    CAPACITY: 110RT TO 200RT


    ModelRefrig. ton (RT)Refrig. ton (104kcal/h)Dimension (mm)Weight (kg)Max. water flow
    DT1TACEH1H2
    QXC110S12A11041.583252500296615040618035024041183.5
    QXC120S14A12045.363552500302315044020040029049091
    QXC130S14A13049.153552500302315044020040029050698.5
    QXC140S14A14052.9235525003023150440200400290521106
    QXC150S14A15056.7035525003023150440200400290536113.5
    QXC160S16A16060.4842625002952150530260310310637120.6
    QXC180S16A18068.0442625002952150530260310310667135.5
    QXC200S16A20075.6042625002952150530260310310697150.8

    ModelS (Vent)

    P (fluoride inlet)

    Copper pipe diameter (inch)

    L(fluoride outlet)

    Copper pipe diameter (inch)

    W (standard port)W (optional port)
    FPT(inner pipe thread)Male flangeMale flange
    QXC110S12A3/83-1/81-5/8DN100DN100
    QXC120S14A3/83-1/81-5/8DN100DN100
    QXC130S14A3/83-1/81-5/8DN100DN100
    QXC140S14A3/83-1/81-5/8DN100DN100
    QXC150S14A3/83-1/81-5/8DN100DN125
    QXC160S16A3/83-1/81-5/8DN125DN125
    QXC180S16A3/83-1/81-5/8DN125DN125
    QXC200S16A3/83-1/81-5/8DN125DN125
