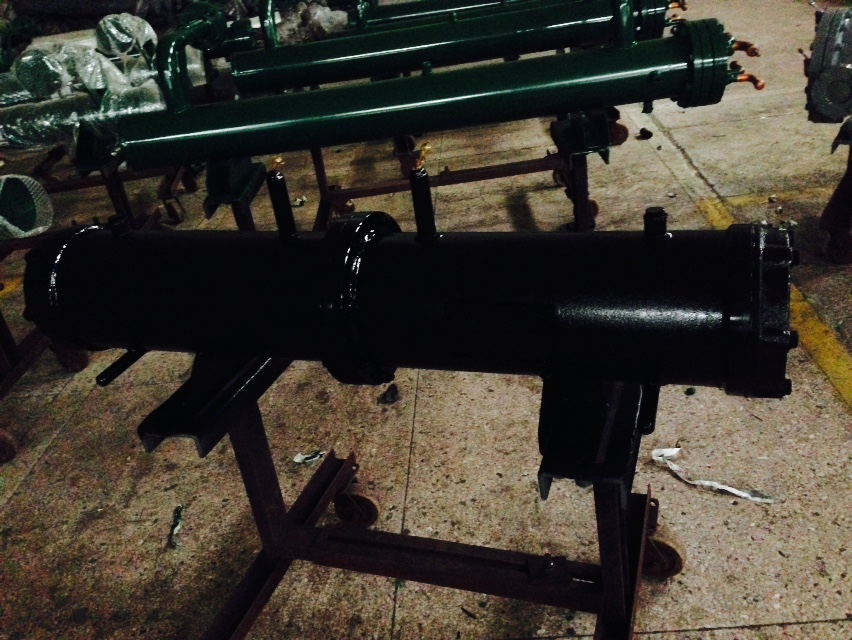

    Anti - Oxidation Tubler Heat Exchanger Condenser For Refrigerator Spare Parts

    Ask Lasest Price
    Brand Name : GREEFOUN
    Model Number : QXC15D5
    Certification : CE
    Payment Terms : TT, L/C, Western Union
    Supply Ability : 100000pieces/year
    Delivery Time : within 15days
    • Product Details
    • Company Profile

    Anti - Oxidation Tubler Heat Exchanger Condenser For Refrigerator Spare Parts

    Refrigeration Equipment Tube Heat Exchanger


    Shell Tube Condenser


    Condenser (Condenser), for the refrigeration system of the mechanical parts, belonging to a heat


    exchanger, can be gas or steam into liquid, the heat in the tube, in a very fast way, spread to the air near


    the tube.


    The condenser process is an exothermic process, so the condenser temperature is high.


    The power plant uses many condensers to condense the steam from the turbine. In the freezing plant, the


    condenser is used to condense the cooling vapors such as ammonia and freon. In the petrochemical


    industry, condensates are used to condense hydrocarbons and other chemical vapors. In the distillation


    process, the steam into a liquid device is also known as the condenser. All the condenser is the gas or


    steam heat away and run.


    The spiral baffle plate evaporator is the latest product designed and made by Qiaoxin and has obtained


    the national technical patents, which can save 20% in copper consumption and 30% in ferrous metals,


    reach the total energy saving rate 30% after test and satisfy the national economic policy of industrial


    upgrading, saving energy and reducing consumption and environmental protection.


    CONDENSER SERIES SINGLE CIRCUIT


    CAPACITY: 40RT TO 60RT


    ModelRefrig. ton (RT)Refrig. ton (104kcal/h)Dimension (mm)Weight (kg)Max. water flow
    DT1TACE
    QXC40S104015.12273160017501202738517231
    QXC45S104517.01273160017501202738518035
    QXC50S105018.90273203221821202738520938.5
    QXC55S105520.79273203221821202738521742.5
    QXC60S106022.68273203221821202738522446

    ModelS (Vent)

    P (fluoride inlet)

    Copper pipe diameter (inch)

    L(fluoride outlet)

    Copper pipe diameter (inch)

    W (standard port)W (optional port)
    FPT(inner pipe thread)FPT(inner pipe thread)FPT(inner pipe thread)
    QXC40S103/81-5/81-1/832-1/2
    QXC45S103/81-5/81-1/832-1/2
    QXC50S103/81-5/81-1/832-1/2
    QXC55S103/81-5/81-3/832-1/2
    QXC60S103/81-5/81-3/832-1/2

    CONDENSER SERIES SINGLE CIRCUIT


    CAPACITY: 40RT TO 70RT


    ModelRefrig. ton (RT)Refrig. ton (104kcal/h)Dimension (mm)Weight (kg)Max. water flow
    DT1TACEH1H2
    QXC40S10A4015.122731600205312036015035024020431
    QXC45S10A4517.012731600205312036015035024021235
    QXC50S10A5018.902732032248512036015035024024038.5
    QXC55S10A5520.792732032248512036015035024024942.5
    QXC60S10A6022.682732032248512036015035024025646
    QXC65S10A6524.572732032248512036015035024026449.2
    QXC70S10A7026.462732032248512036015035024027053.5

    ModelS (Vent)

    P (fluoride inlet)

    Copper pipe diameter (inch)

    L(fluoride outlet)

    Copper pipe diameter (inch)

    W (standard port)W (optional port)
    FPT(inner pipe thread)Male flangeMale flange
    QXC40S10A3/81-5/81-1/8DN65DN65
    QXC45S10A3/81-5/81-1/8DN65DN65
    QXC50S10A3/81-5/81-1/8DN65DN80
    QXC55S10A3/81-5/81-1/8DN65DN80
    QXC60S10A3/81-5/81-3/8DN65DN80
    QXC65S10A3/81-5/81-3/8DN65DN80
    QXC70S10A3/82-1/81-3/8DN80DN80

    STRAIGHT SINGLE SERIES DRY SPIRAL BAFFLE PLATE EVAPORATOR


    (DOUBLE CIRCUIT) CAPACITY: 320KW TO 680KW


    ModelsRE320D10RE360D12RE420D12RE470D12RE540D14RE620D14RE680D14

    Rated data

    Refrigerant R22

    ti=12°C te=2°C

    tu=7°C Dts=5°C

    QnKW320360420470540620680

    Kcal/h

    (×103 )

    267317361404464533585
    Wnm3 /h53.36272.280.893107116
    Wmm3 /h687081.7100105140145
    Dpnbar0.430.430.350.460.410.470.49

    ModelsRE320D10RE360D12RE420D12RE470D12RE540D14RE620D14RE680D14
    Dimension(mm)A140140150150150170170
    B273273325325355377377
    C2500169024001500269026902860
    D360360406406440460460
    E370370380380400400400
    F2586258624882586277627762946
    VentS11/21/21/21/21/21/21/2
    OutletS21/21/21/21/21/21/21/2
    ConnectionW(DN)100100125125125150150
    D1(mm)35354242424242
    D2(mm)67678080909090
    P(kg)296380398442459654669

    Qn-rated refrigerating capacity Wn-cooling water flow Wm-maximum cooling water flow

    Dpn-pressure drop of recirculating cooling water Dts-overheat temperature


    OIL COOLER


    CAPACITY 3RT TO 40RT


    ModelRefrig. ton (RT)Refrig. ton (104kcal/h)Dimension (mm)Weight (kg)
    DT1TACE
    QXCF3S431.134114635721751407023
    QXCF5S551.189140635721751657033
    QXCF8S683.024168762858901859249
    QXCF10S6103.7801689531049901859258
    QXCF12S6124.5361689531049901859262
    QXCF15S6155.670168127013661001859275

    ModelS (Oil vent)

    P1 (inlet/outlet oil vent)

    Copper pipe external diameter (inch)

    W (inlet/outlet water vent)
    FPT(inner pipe thread)FPT(inner pipe thread)
    QXCF3S41/25/81
    QXCF5S51/25/81-1/2
    QXCF8S61/27/81-1/2
    QXCF10S61/27/81-1/2
    QXCF12S61/21-1/81-1/2
    QXCF15S61/21-1/81-1/2

    GAS-LIQUID SEPARATOR


    CAPACITY 30L TO 120L


    ModelsLDimension (mm)Kg
    DABH1H2
    QXQF30L3035522022045050021
    QXQF40L4035522022060065026
    QXQF60L6042630030060065047
    QXQF80L8042630030080085058
    QXQF100L1004263603601000105076
    QXQF120L1204263603601200125097

    ModelsS (pipe thread)P1P2
    FPTPipe diameter (inch)Pipe diameter (inch)
    QXQF30L3/81-5/81-5/8
    QXQF40L3/81-5/81-5/8
    QXQF60L3/82-1/82-1/8
    QXQF80L3/82-1/82-1/8
    QXQF100L3/82-5/82-5/8
    QXQF120L3/83-1/83-1/8``
