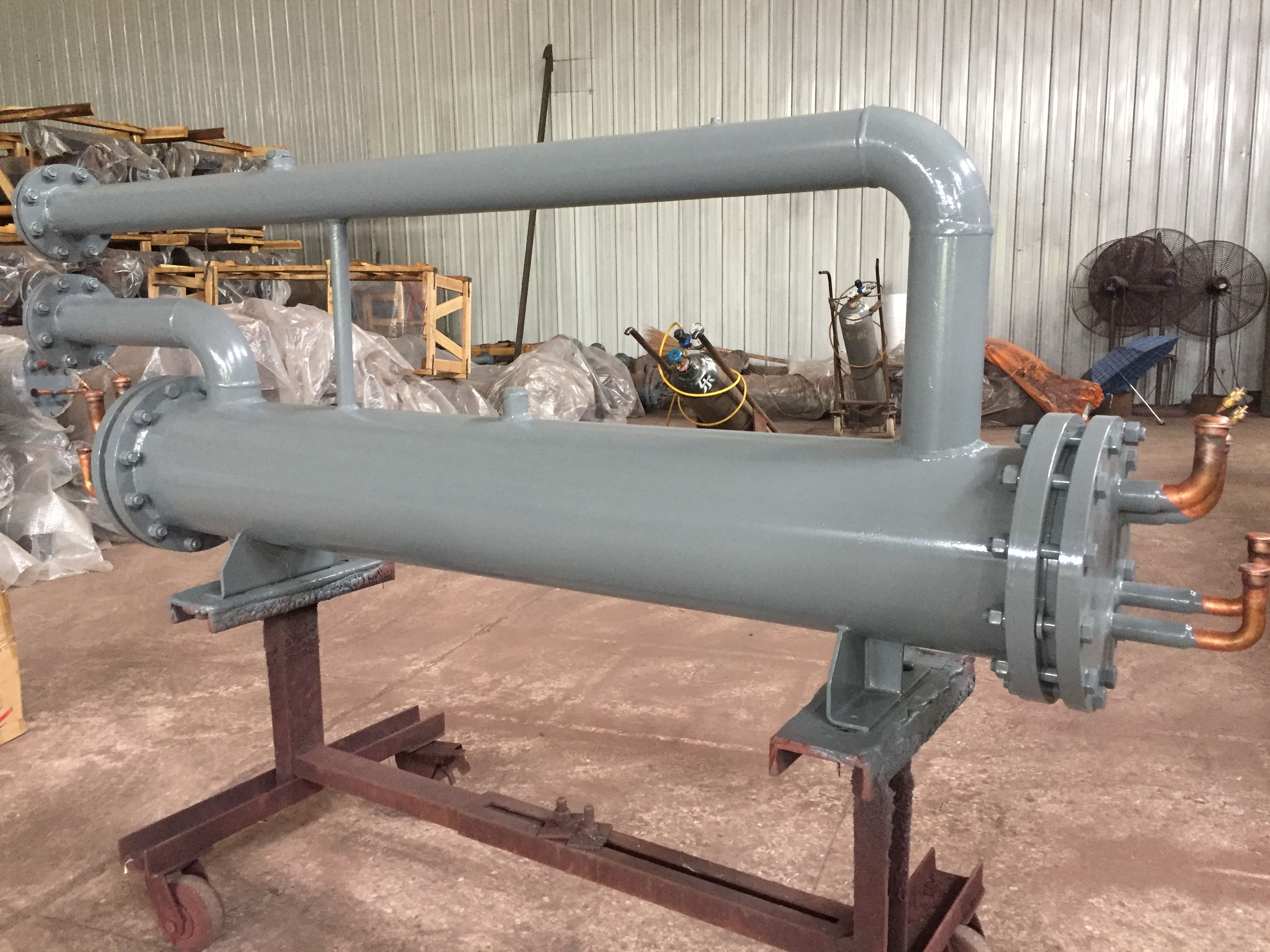

    80TR Carbon Steel Dry Heat Exchanger , Shell And Tube Water Cooled Condenser

    80TR Water - Cooled Evaporator for


    Rooftop Air Conditioning Unit


    80TR Water - Cooled Evaporator for Rooftop Air Conditioning Unit is suitable for water cooled unit, water


    source heat pump, air cooled pump and air cooled heat pump unit.

    The product is applying for refrigerants of R22, R134a, R407C and R410A etc.

    The referigerating medium is for tap water, underground water, river water and sea water or brine, water

    and glycol solution, sulfate solution, etc.

    For heat exchange tube, copper pipe, copper nickel alloy tube, aluminum brass tube, stainless steel tube,

    etc.

    The shell raw material mainly are seamless steel tube, stainless steel pipe.


    1, Heat exchange tube: four main tube type.

    (1) ∅ within 3/8 "thread copper coil, it is mainly used for" U "type tube evaporator.

    (2) ∅ within 1/2 "threaded straight copper tube, straight tube is mainly used for dry-type evaporator.

    (3) ∅ 1/2 "corrugated straight stainless steel tube, straight tube is mainly used in food industry of dry

    evaporator.

    (4) ∅ 5/8 "inside outside screw wing efficient copper tube, it is mainly used for air precooling industry dry

    evaporator.

    2, shell raw material:

    There are two of the major materials:

    (1) # 20 seamless steel tube, mainly used for all kinds of load - more than 20 ℃ cold agent.

    (2) 304/316 l stainless steel tube, it is mainly used for food and low temperature (below 25 ℃, higher than

    40 ℃) of the refrigerant, 316 l can also be used for cooling load of the sulfate for industry.

    3, interface:

    U SHAPED TUBE DRY EVAPORATOR (DOUBLE CIRCUIT)


    CAPACITY: 120KW TO 310KW


    ModelsQXU120D8QXU135D8QXU155D8QXU185D10QXU220D10QXU270D10QXU310D10

    Rated data

    Refrigerant R22

    ti=12°C te=2°C

    tu=7°C Dts=5°C

    QnKW120135155185220270310

    Kcal/h

    (×103 )

    103.2116133.3159189232267
    Wnm3 /h20.623.226.731.837.846.453.3
    Wmm3 /h25283041436568
    Dpnbar0.410.440.370.360.430.420.43

    ModelsQXU120D8QXU135D8QXU155D8QXU185D10QXU220D10QXU270D10QXU310D10

    Dimension

    (mm)

    A1815211523152320232026542654
    B219219219219273273273
    C200200200200234234234
    D1530183020302000200022802280
    E240240240300300300300
    VentS11/21/21/21/21/21/21/2
    OutletS21/21/21/21/21/21/21/2
    ConnectionW(DN)89898989114114114
    D1(mm)22222222353535
    D2(mm)42424242545454
    P(kg)145155163232255279296

    Qn-rated refrigerating capacity Wn-cooling water flow Wm-maximum cooling water flow

    Dpn-pressure drop of recirculating cooling water Dts-overheat temperature


    U SHAPED TUBE DRY EVAPORATOR (SINGLE CIRCUIT)


    CAPACITY: 120KW TO 270KW


    ModelsQXU120S8QXU135S8QXU155S8QXU185S10QXU220S10QXU270S10

    Rated data

    Refrigerant R22

    ti=12°C te=2°C

    tu=7°C Dts=5°C

    QnKW120135155185220270
    Kcal/h(×103 )103.2116133.3159180232
    Wnm3 /h20.323.226.731.837.846.4
    Wmm3 /h252830414365
    Dpnbar0.410.440.370.360.430.42

    ModelsQXU120S8QXU135S8QXU155S8QXU185S10QXU220S10QXU270S10
    Dimension(mm)A181521152315232026542654
    B219219219273273273
    C180180180200234234
    D153018302030200022802280
    E240240240300300300
    VentS11/21/21/21/21/21/2
    OutletS21/21/21/21/21/21/2
    ConnectionW(DN)808080100100100
    D1(mm)353535353535
    D2(mm)545467678080
    P(kg)145155163232279289

    Qn-rated refrigerating capacity Wn-cooling water flow Wm-maximum cooling water flow

    Dpn-pressure drop of recirculating cooling water Dts-overheat temperature


    CONDENSER SERIES SINGLE CIRCUIT


    CAPACITY: 110RT TO 200RT


    ModelRefrig. ton (RT)Refrig. ton (104kcal/h)Dimension (mm)Weight (kg)Max. water flow
    DT1TACEH1H2
    QXC110S12A11041.583252500296615040618035024041183.5
    QXC120S14A12045.363552500302315044020040029049091
    QXC130S14A13049.153552500302315044020040029050698.5
    QXC140S14A14052.9235525003023150440200400290521106
    QXC150S14A15056.7035525003023150440200400290536113.5
    QXC160S16A16060.4842625002952150530260310310637120.6
    QXC180S16A18068.0442625002952150530260310310667135.5
    QXC200S16A20075.6042625002952150530260310310697150.8

    ModelS (Vent)

    P (fluoride inlet)

    Copper pipe diameter (inch)

    L(fluoride outlet)

    Copper pipe diameter (inch)

    W (standard port)W (optional port)
    FPT(inner pipe thread)Male flangeMale flange
    QXC110S12A3/83-1/81-5/8DN100DN100
    QXC120S14A3/83-1/81-5/8DN100DN100
    QXC130S14A3/83-1/81-5/8DN100DN100
    QXC140S14A3/83-1/81-5/8DN100DN100
    QXC150S14A3/83-1/81-5/8DN100DN125
    QXC160S16A3/83-1/81-5/8DN125DN125
    QXC180S16A3/83-1/81-5/8DN125DN125
    QXC200S16A3/83-1/81-5/8DN125DN125
