    R22 Refrigerant Industrial Shell And Tube Heat Exchanger With Seamless Steel Pipe Shell Material

    Ask Lasest Price
    Brand Name : GREEFOUN
    Model Number : QXU58S5
    Certification : CE
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 100000pieces/year
    Delivery Time : within 15days
    • Product Details
    • Company Profile

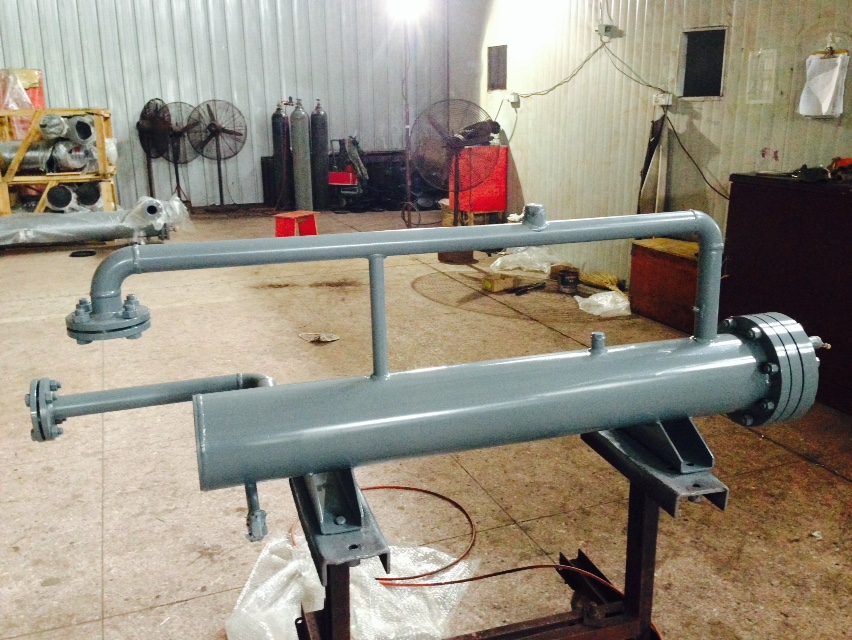

    R22 Refrigerant Industrial Shell And Tube Heat Exchanger With Seamless Steel Pipe Shell Material


    Industrial Heat Exchanger


    Water Cooling Evaporator for Screw Chiller



    Industrial Heat Exchanger Water Cooling Evaporator for Screw Chiller is suitable for water cooled unit,


    water source heat pump, air cooled pump and air cooled heat pump unit.

    The product is applying for refrigerants of R22, R134a, R407C and R410A etc.

    The referigerating medium is for tap water, underground water, river water and sea water or brine, water

    and glycol solution, sulfate solution, etc.

    For heat exchange tube, copper pipe, copper nickel alloy tube, aluminum brass tube, stainless steel tube,

    etc.

    The shell raw material mainly are seamless steel tube, stainless steel pipe.


    1, Heat exchange tube: four main tube type.

    (1) ∅ within 3/8 "thread copper coil, it is mainly used for" U "type tube evaporator.

    (2) ∅ within 1/2 "threaded straight copper tube, straight tube is mainly used for dry-type evaporator.

    (3) ∅ 1/2 "corrugated straight stainless steel tube, straight tube is mainly used in food industry of dry

    evaporator.

    (4) ∅ 5/8 "inside outside screw wing efficient copper tube, it is mainly used for air precooling industry dry

    evaporator.

    2, shell raw material:

    There are two of the major materials:

    (1) # 20 seamless steel tube, mainly used for all kinds of load - more than 20 ℃ cold agent.

    (2) 304/316 l stainless steel tube, it is mainly used for food and low temperature (below 25 ℃, higher than

    40 ℃) of the refrigerant, 316 l can also be used for cooling load of the sulfate for industry.

    3, interface:


    The heat exchange tube uses copper pipe, nickel-copper alloy tubes, aluminum brass tube and stainless


    steel tube as the material and the shell uses No.20 seamless steel tube and stainless steel tube.


    STEAM TO WATER HEAT EXCHANGER


    CAPACITY: 1000KW TO 4000KW


    ModelCapacity (KW)Dimension (mm)Weight (kg)
    DT1TACEFH1H2
    QXSW60S10100027316002053120360150100350240297
    QXSW70S12125032520322498150406180120350240357
    QXSW80S12140032520322498150406180120350240372
    QXSW90S12160032520322498150406180120350240387
    QXSW100S12180032520322498150406180120350240412
    QXSW120S14210035520322555150440180120400290494
    QXSW140S14250035525003023180440180120400290517
    QXSW180S16320042625002951180530260150260260729
    QXSW220S16400042625002951180530260150260260784

    ModelS1S2W
    SpecificationConnection typeSpecificationConnection typeSpecificationConnection type
    QXSW60S10DN100male flangeDN65male flangeDN80male flange
    QXSW70S12DN100male flangeDN65male flangeDN80male flange
    QXSW80S12DN125male flangeDN80male flangeDN100male flange
    QXSW90S12DN125male flangeDN80male flangeDN100male flange
    QXSW100S12DN125male flangeDN80male flangeDN100male flange
    QXSW120S14DN125male flangeDN80male flangeDN100male flange
    QXSW140S14DN125male flangeDN80male flangeDN100male flange
    QXSW180S16DN150male flangeDN100male flangeDN125male flange
    QXSW220S16DN150male flangeDN100male flangeDN125male flange

    CONDENSER SERIES SINGLE CIRCUIT


    CAPACITY: 40RT TO 70RT


    ModelRefrig. ton (RT)Refrig. ton (104kcal/h)Dimension (mm)Weight (kg)Max. water flow
    DT1TACEH1H2
    QXC40S10A4015.122731600205312036015035024020431
    QXC45S10A4517.012731600205312036015035024021235
    QXC50S10A5018.902732032248512036015035024024038.5
    QXC55S10A5520.792732032248512036015035024024942.5
    QXC60S10A6022.682732032248512036015035024025646
    QXC65S10A6524.572732032248512036015035024026449.2
    QXC70S10A7026.462732032248512036015035024027053.5

    ModelS (Vent)

    P (fluoride inlet)

    Copper pipe diameter (inch)

    L(fluoride outlet)

    Copper pipe diameter (inch)

    W (standard port)W (optional port)
    FPT(inner pipe thread)Male flangeMale flange
    QXC40S10A3/81-5/81-1/8DN65DN65
    QXC45S10A3/81-5/81-1/8DN65DN65
    QXC50S10A3/81-5/81-1/8DN65DN80
    QXC55S10A3/81-5/81-1/8DN65DN80
    QXC60S10A3/81-5/81-3/8DN65DN80
    QXC65S10A3/81-5/81-3/8DN65DN80
    QXC70S10A3/82-1/81-3/8DN80DN80

    CONDENSER SERIES SINGLE CIRCUIT


    CAPACITY: 75RT TO 100RT


    ModelRefrig. ton (RT)Refrig. ton (104kcal/h)Dimension (mm)Weight (kg)Max. water flow
    DT1TACEH1H2
    QXC75S12A7528.3503252032248512036018035024033557.2
    QXC80S12A8030.2403252032248512040618035024034361
    QXC85S12A8532.1303252032248512040618035024035064.1
    QXC90S12A9034.0203252032248512040618035024036468
    QXC95S12A9535.9103252032248512040618035024037272.1
    QXC100S12A10037.8003252500296612040618035024037976

    ModelS (Vent)

    P (fluoride inlet)

    Copper pipe diameter (inch)

    L(fluoride outlet)

    Copper pipe diameter (inch)

    W (standard port)W (optional port)
    FPT(inner pipe thread)Male flangeMale flange
    QXC75S12A3/82-1/81-3/8DN80DN100
    QXC80S12A3/82-1/81-3/8DN80DN100
    QXC85S12A3/82-5/81-3/8DN100DN100
    QXC90S12A3/82-5/81-3/8DN100DN100
    QXC95S12A3/82-5/81-3/8DN100DN100
    QXC100S12A3/83-1/81-5/8DN100DN100
