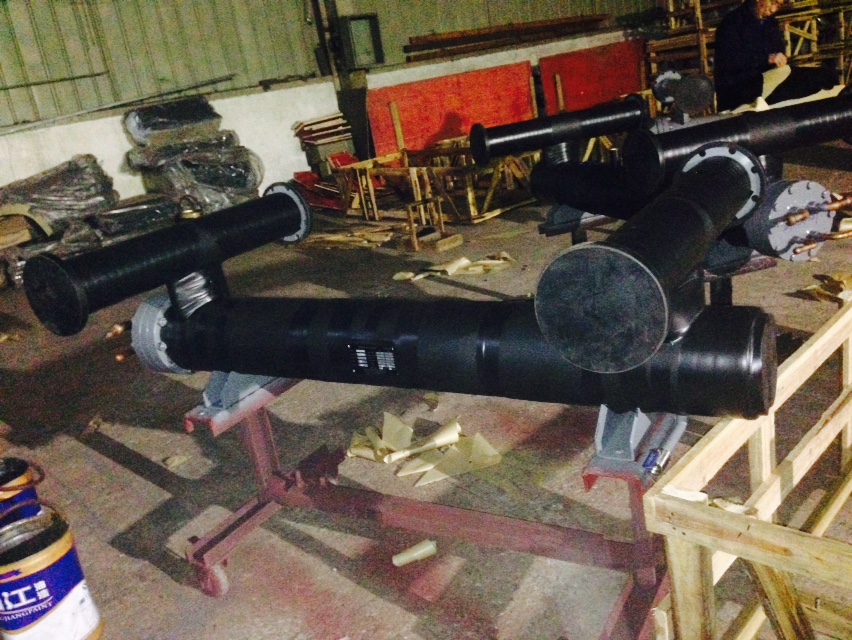

    OEM Carbon Steel High Pressure Tube Heat Exchanger For Chiller Spare Parts

    OEM High Pressure Tube


    Heat Exchanger for Chiller Spare Parts


    OEM High Pressure Tube Heat Exchanger for Chiller Spare Parts is suitable for water cooled unit, water


    source heat pump, air cooled pump and air cooled heat pump unit.

    The product is applying for refrigerants of R22, R134a, R407C and R410A etc.

    The referigerating medium is for tap water, underground water, river water and sea water or brine, water

    and glycol solution, sulfate solution, etc.

    For heat exchange tube, copper pipe, copper nickel alloy tube, aluminum brass tube, stainless steel tube,

    etc. The shell raw material mainly are seamless steel tube, stainless steel pipe.


    1, Heat exchange tube: four main tube type.

    (1) ∅ within 3/8 "thread copper coil, it is mainly used for" U "type tube evaporator.

    (2) ∅ within 1/2 "threaded straight copper tube, straight tube is mainly used for dry-type evaporator.

    (3) ∅ 1/2 "corrugated straight stainless steel tube, straight tube is mainly used in food industry of dry

    evaporator.

    (4) ∅ 5/8 "inside outside screw wing efficient copper tube, it is mainly used for air precooling industry dry

    evaporator.

    2, shell raw material:

    There are two of the major materials:

    (1) # 20 seamless steel tube, mainly used for all kinds of load - more than 20 ℃ cold agent.

    (2) 304/316 l stainless steel tube, it is mainly used for food and low temperature (below 25 ℃, higher than

    40 ℃) of the refrigerant, 316 l can also be used for cooling load of the sulfate for industry.

    3, interface:

    The spiral baffle plate evaporator is the latest product designed and made by Qiaoxin and has obtained


    the national technical patents, which can save 20% in copper consumption and 30% in ferrous metals,


    reach the total energy saving rate 30% after test and satisfy the national economic policy of industrial


    upgrading, saving energy and reducing consumption and environmental protection.


    WATER TO WATER HEAT EXCHANGER


    CAPACITY: 500KW TO 3500KW


    ModelCapacity (KW)Dimension (mm)Weight (kg)
    DT1TACEFH1H2
    QXWW35S1050027312701723120360150100350240200
    QXWW50S1070027316002053120360150100350240237
    QXWW70S12100032520322498150406180120350240322
    QXWW100S12150032520322498150406180120350240367
    QXWW140S14200035525003023180440180150400290512
    QXWW170S16250042625002951180530260150310310693
    QXWW200S16300042625002951180530260150310310736
    QXWW240S16350042625002951180530260150310310795

    ModelW1W2
    SpecificationConnection typeSpecificationConnection type
    QXWW35S10DN80male flangeDN80male flange
    QXWW50S10DN80male flangeDN80male flange
    QXWW70S12DN100male flangeDN100male flange
    QXWW100S12DN100male flangeDN100male flange
    QXWW140S14DN100male flangeDN100male flange
    QXWW170S16DN125male flangeDN125male flange
    QXWW200S16DN125male flangeDN125male flange
    QXWW240S16DN125male flangeDN125male flange

    U SHAPED TUBE DRY EVAPORATOR (DOUBLE CIRCUIT)


    CAPACITY: 120KW TO 310KW


    ModelsQXU120D8QXU135D8QXU155D8QXU185D10QXU220D10QXU270D10QXU310D10

    Rated data

    Refrigerant R22

    ti=12°C te=2°C

    tu=7°C Dts=5°C

    QnKW120135155185220270310

    Kcal/h

    (×103 )

    103.2116133.3159189232267
    Wnm3 /h20.623.226.731.837.846.453.3
    Wmm3 /h25283041436568
    Dpnbar0.410.440.370.360.430.420.43

    ModelsQXU120D8QXU135D8QXU155D8QXU185D10QXU220D10QXU270D10QXU310D10

    Dimension

    (mm)

    A1815211523152320232026542654
    B219219219219273273273
    C200200200200234234234
    D1530183020302000200022802280
    E240240240300300300300
    VentS11/21/21/21/21/21/21/2
    OutletS21/21/21/21/21/21/21/2
    ConnectionW(DN)89898989114114114
    D1(mm)22222222353535
    D2(mm)42424242545454
    P(kg)145155163232255279296

    Qn-rated refrigerating capacity Wn-cooling water flow Wm-maximum cooling water flow

    Dpn-pressure drop of recirculating cooling water Dts-overheat temperature


    CONDENSER SERIES DOUBLE CIRCUIT


    CAPACITY: 10RT TO 40RT


    ModelRefrig. ton (RT)Refrig. ton (104kcal/h)Dimension (mm)Weight (kg)Max. water flow
    DT1TACC2E
    QXC10D6103.7816848310657518523392787.8
    QXC15D6155.67168635136975185233928511.6
    QXC20D6207.56168819173790185233929615.8
    QXC25D6259.4521981917559023828511313219.5
    QXC30D63011.3421981917559023828511313723
    QXC35D63513.2321981917559023828511314527.3
    QXC40D64015.1221995320249023828511316231

    ModelS (Vent)

    P (fluoride inlet)

    Copper pipe diameter (inch)

    L(fluoride outlet)

    Copper pipe diameter (inch)

    W (standard port)
    FPT(inner pipe thread)FPT(inner pipe thread)
    QXC10D61/45/85/81-1/2
    QXC15D61/47/85/81-1/2
    QXC20D61/47/85/81-1/2
    QXC25D61/41-1/87/82
    QXC30D61/41-1/87/82-1/2
    QXC35D61/41-3/87/82-1/2
    QXC40D61/41-3/87/82-1/2

    CONDENSER SERIES DOUBLE CIRCUIT


    CAPACITY: 50RT TO 200RT


    ModelRefrig. ton (RT)Refrig. ton (104kcal/h)Dimension (mm)Weight (kg)Max. water flow
    DT1TACEH1H2
    QXC50D10A5018.927395323649036015035024026538.5
    QXC60D10A6022.6827395323649036015035024027946
    QXC70D12A7026.4632595323779040618035024035953.5
    QXC80D12A8030.2432595323779040618035024037561
    QXC100D12A10037.8032595323779040618035024040976
    QXC120D12A12045.363251270301112040618035024048191
    QXC140D14A14052.9235512703018120440200350240553106
    QXC160D16A16060.4842616003656120510260310310723120.6
    QXC200D16A20075.6042616003656120510260310310777150.8

    ModelS (Vent)

    P (fluoride inlet)

    Copper pipe diameter (inch)

    L(fluoride outlet)

    Copper pipe diameter (inch)

    W (standard port)
    FPT(inner pipe thread)Male flange
    QXC50D10A3/81-3/87/8DN65
    QXC60D10A3/81-5/81-1/8DN65
    QXC70D12A3/81-5/81-1/8DN80
    QXC80D12A3/81-5/81-1/8DN80
    QXC100D12A3/82-1/81-3/8DN100
    QXC120D12A3/82-1/81-3/8DN100
    QXC140D14A3/82-1/81-3/8DN100
    QXC160D16A3/82-5/81-3/8DN125
    QXC200D16A3/82-5/81-5/8DN125
