    Seamless High Pressure Heat Exchanger , Water Water Heat Exchanger 3KW-4000KW

    Ask Lasest Price
    Brand Name : GREEFOUN
    Model Number : QXE80
    Certification : CE
    Price :
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 100000pieces/year
    Delivery Time : within 15days
    • Product Details
    • Company Profile

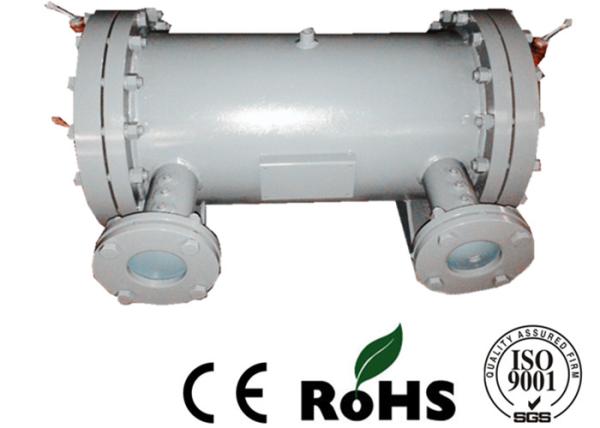

    Seamless High Pressure Heat Exchanger , Water Water Heat Exchanger 3KW-4000KW


    High Pressure Tube Heat Exchanger


    Water - Cooled Evaporator Condenser


    Dry type shell tube heat exchanger water-cooled dry evaporator is suitable for water cooled unit, water

    source heat pump, air cooled pump and air cooled heat pump unit.

    The product is applying for refrigerants of R22, R134a, R407C and R410A etc.

    The referigerating medium is for tap water, underground water, river water and sea water or brine, water

    and glycol solution, sulfate solution, etc.

    For heat exchange tube, copper pipe, copper nickel alloy tube, aluminum brass tube, stainless steel tube, etc.

    The shell raw material mainly are seamless steel tube, stainless steel pipe.


    1, Heat exchange tube: four main tube type.

    (1) ∅ within 3/8 "thread copper coil, it is mainly used for" U "type tube evaporator.

    (2) ∅ within 1/2 "threaded straight copper tube, straight tube is mainly used for dry-type evaporator.

    (3) ∅ 1/2 "corrugated straight stainless steel tube, straight tube is mainly used in food industry of dry evaporator.

    (4) ∅ 5/8 "inside outside screw wing efficient copper tube, it is mainly used for air precooling industry dry evaporator.

    2, shell raw material:

    There are two of the major materials:

    (1) # 20 seamless steel tube, mainly used for all kinds of load - more than 20 ℃ cold agent.

    (2) 304/316 l stainless steel tube, it is mainly used for food and low temperature (below 25 ℃, higher than

    40 ℃) of the refrigerant, 316 l can also be used for cooling load of the sulfate for industry.

    3, interface:

    HIGH PRESSURE SPIRAL BAFFLE PLATE EVAPORATOR


    (DOUBLE MACHINE) CAPACITY: 750KW TO 2200KW


    ModelsRE750D14RE960D16RE1100D16RE1240D20RE1400D20RE1800D20RE2200D20

    Rated data
    Refrigerant R22

    ti=12°C te=2°C

    tu=7°C Dts=5°C

    QnKW75096011001240140018002200
    Kcal/h(×103 )7008179831076116912781456
    Wnm3 /h121151168230263276323
    Wmm3 /h136162176261276312345
    Dpnbar0.480.580.480.400.520.580.58

    ModelsRE750D14RE960D16RE1100D16RE1240D20RE1400D20RE1800D20RE2200D20
    Dimension(mm)A170170170200200190230
    B377426426480480480480
    C3000300030003100320036003600
    D460530530600600600600
    E400450450500500500550
    F3086312431243224332437243624
    VentS11/21/21/21/21/21/21/2
    OutletS21/21/21/21/21/21/21/2
    ConnectionW(DN)150150150200200200200
    D1(mm)42424242(4)42(4)54(4)54(4)
    D2(mm)929292108108108108
    P(kg)70677280889294610251218

    Qn-rated refrigerating capacity Wn-cooling water flow Wm-maximum cooling water flow

    Dpn-pressure drop of recirculating cooling water Dts-overheat temperature
