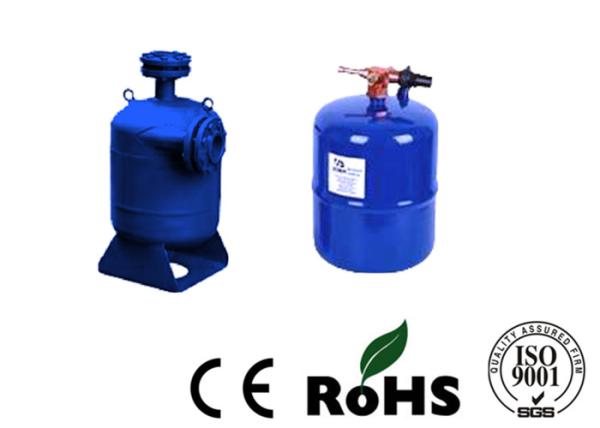

    120L High Pressure Heat Exchanger


    Horizontal Type High Pressure Heat Exchanger Liquid Accumulator And Oil Separator


    Horizontal Type Liquid Accumulator and Oil Separator


    Tube Heat Exchanger


    Oil Separator Simple working principle: the compressor out of the high-pressure gas (gaseous working


    fluid and lubricants)


    Into the oil separator, into the oil separator guide leaf, along the guide leaf was spiral flow, by centrifugal


    force and gravity, the lubricating oil from the working gas separation, along the inner wall of the cylinder


    flow.


    The working gas is drawn from the center pipe through the perforated baffle. Separated lubricants,


    concentrated in the lower part of the oil separator, can be regularly discharged, or the use of float valve,


    so that the oil automatically returned to the compressor crankcase. The flow rate in the centrifugal


    manifold is recommended as ammonia 10-25 m / s and Freon 20-20 m / s.


    VERTICAL ACCUMULATOR


    CAPACITY 10L TO 80L


    ModelsLDimension (mm)Kg
    DABH1H2
    QXR10L1027322022030035021
    QXR15L1527322022040045026
    QXR20L2032528028040045035
    QXR30L3035530030045050047
    QXR40L4035530030060065058
    QXR60L6042636036060065076
    QXR80L8042636036060085097

    ModelsS (pipe thread)P1P2
    FPTPipe diameter (inch)Pipe diameter (inch)
    QXR10L3/87/87/8
    QXR15L3/81-1/81-1/8
    QXR20L3/81-3/81-3/8
    QXR30L3/81-3/81-3/8
    QXR40L3/81-3/81-3/8
    QXR60L3/81-5/81-5/8
    QXR80L3/81-5/81-5/8

    HORIZONTAL ACCUMULATOR


    CAPACITY 10L TO 80L


    ModelsLDimension (mm)Kg
    DA1AB1B
    QXR10W1021920015040020020
    QXR15W1521925020060040027
    QXR20W2027325020065040039
    QXR30W3032530025070040054
    QXR40W4032530030090060067
    QXR60W6035535030090060081
    QXR80W803553503001200900106

    ModelsS (pipe thread)P1P2
    FPTPipe diameter (inch)Pipe diameter (inch)
    QXR10W3/87/87/8
    QXR15W3/81-1/81-1/8
    QXR20W3/81-3/81-3/8
    QXR30W3/81-3/81-3/8
    QXR40W3/81-3/81-3/8
    QXR60W3/81-5/81-5/8
    QXR80W3/81-5/81-5/8

    OIL SEPARATOR


    CAPACITY 50L TO 200L


    ModelsLDimension (mm)Kg
    ABCDD1EF
    QXYFQ50L5060028018032527339042090
    QXYFQ75L75650300200325273438460120
    QXYFQ95L95650320220377325462500142
    QXYFQ120L120750350250426355492550168
    QXYFQ150L150800400300480377410560190
    QXYFQ170L170950480380530426638700258
    QXYFQ200L2001180480380530426868930286

    ModelsCorresponding cooling capacityINLET aOUTLET bReturn opening k
    KWCopper tube external diameter (mm)Copper tube external diameter (mm)Copper tube external diameter (mm)
    QXYFQ50L150-250545416
    QXYFQ75L260-450676716
    QXYFQ95L460-650808019
    QXYFQ120L660-850929219
    QXYFQ150L960-115010510519
    QXYFQ170L1160-135010510519
    QXYFQ200L1360-160013313319
