    High Temperature Marine Condensing Unit Higher Return Oil Efficiency , No Leakage

    Ask Lasest Price
    Brand Name : GREEFOUN
    Model Number : QXC220
    Certification : CE
    Payment Terms : TT, L/C, Western Union
    Supply Ability : 100000pieces/year
    Delivery Time : within 15days
    • Product Details
    • Company Profile

    High Temperature Marine Condensing Unit Higher Return Oil Efficiency , No Leakage

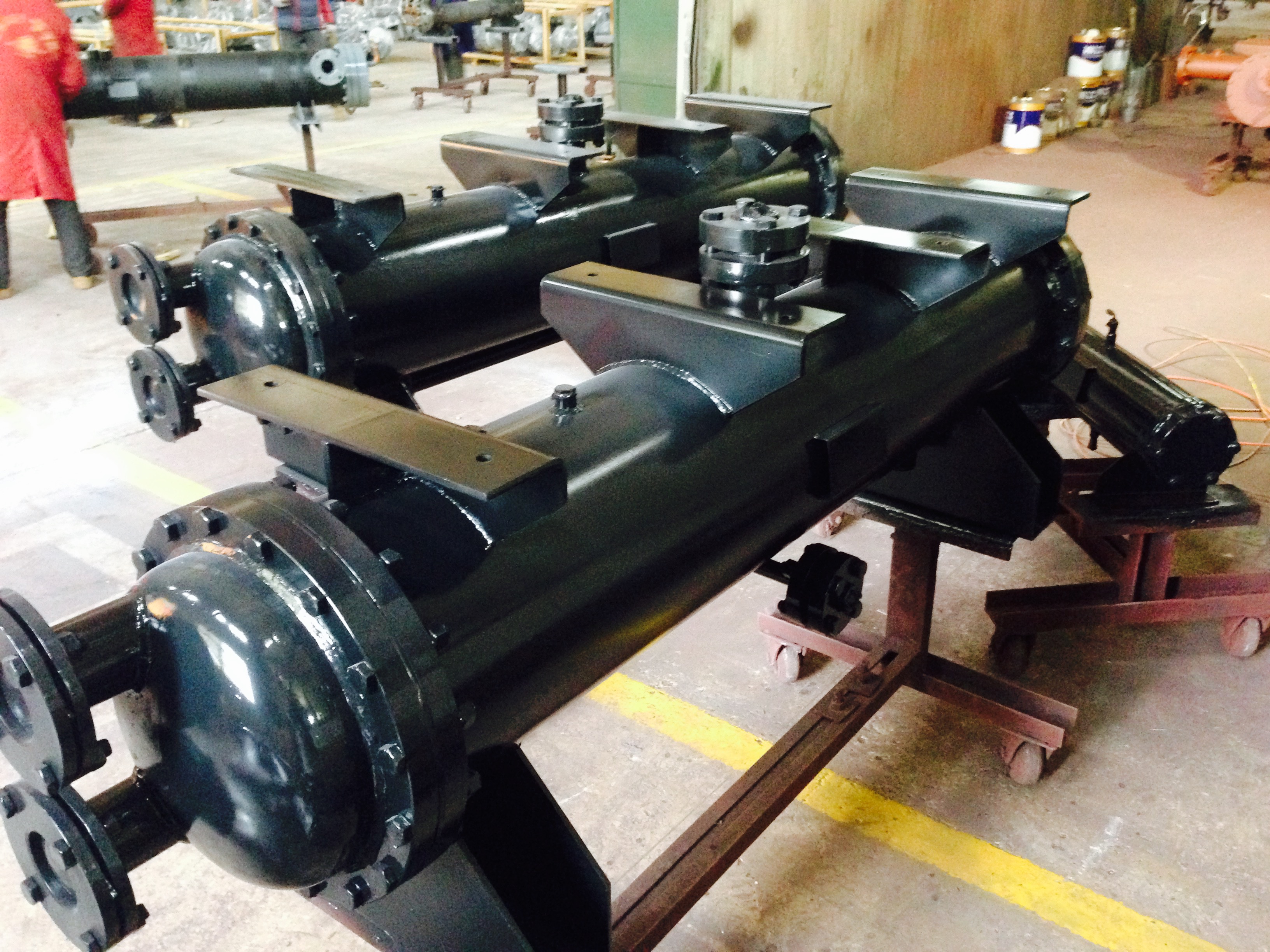

    Industrial Condenser Shell and


    Tube Heat Exchanger Marine Condenser


    1, Introduction:


    (1) The product is applicable to water chiller units, water source heat pump units etc.


    (2) Suitable refrigerants are R22, R134a, R407C, R410A etc.


    (3) Apply load cold agent for tap water, underground water, river water and sea water or brine, water and


    glycol solution, sulfate solution, etc.


    (4) For heat exchange tube, copper pipe, copper nickel alloy tube, aluminum brass tube, stainless steel


    tube, etc. Shell using seamless steel pipe, stainless steel tube, etc.

    2, Heat exchange tube: two main specifications.

    (1) ∅ within 5/8 "efficient copper pipe outside screw wing, ∅ 5/8" stainless steel pipe.

    (2) the ∅ 3/4 "inside outside screw wing efficient copper tube, ∅ 3/4" stainless steel pipe

    3, Main material, the shell of 20 # seamless steel pipe, stainless steel pipe.

    4, Interface:

    CONDENSER SERIES SINGLE CIRCUIT


    CAPACITY: 3RT TO 15RT


    ModelRefrig. ton (RT)Refrig. ton (104kcal/h)Dimension (mm)Weight (kg)Max. water flow
    DT1TACE
    QXC3S431.1341146357217514070232.5
    QXC5S551.8901406357217516570334
    QXC8S683.0241687628589018592496.5
    QXC10S6103.78016895310499018592587.8
    QXC12S6124.53616895310499018592629.6
    QXC15S6155.67016812701366100185927511.6

    ModelS (Vent)

    P (fluoride inlet)

    Copper pipe diameter (inch)

    L(fluoride outlet)

    Copper pipe diameter (inch)

    W (standard port)W (optional port)
    FPT(inner pipe thread)FPT(inner pipe thread)FPT(inner pipe thread)
    QXC3S41/45/85/813/4
    QXC5S51/45/85/81-1/21
    QXC8S61/47/85/81-1/21
    QXC10S61/47/85/81-1/21
    QXC12S61/41-1/87/81-1/21
    QXC15S61/41-1/87/81-1/21

    CONDENSER SERIES SINGLE CIRCUIT


    CAPACITY: 20RT TO 35RT


    ModelRefrig. ton (RT)Refrig. ton (104kcal/h)Dimension (mm)Weight (kg)Max. water flow
    DT1TACE
    QXC20S8207.560219127013809023811311015.8
    QXC25S8259.4502191600171012023811312119.5
    QXC30S83011.3402191600171012023811313423
    QXC35S83513.2302191600171012023811314027.3

    ModelS (Vent)

    P (fluoride inlet)

    Copper pipe diameter (inch)

    L(fluoride outlet)

    Copper pipe diameter (inch)

    W (standard port)W (optional port)
    FPT(inner pipe thread)FPT(inner pipe thread)FPT(inner pipe thread)
    QXC20S81/41-1/87/82-1/22
    QXC25S81/41-1/87/82-1/22
    QXC30S81/41-3/81-1/82-1/22
    QXC35S81/41-5/81-1/82-1/22

    CONDENSER SERIES SINGLE CIRCUIT


    CAPACITY: 110RT TO 200RT


    ModelRefrig. ton (RT)Refrig. ton (104kcal/h)Dimension (mm)Weight (kg)Max. water flow
    DT1TACEH1H2
    QXC110S12A11041.583252500296615040618035024041183.5
    QXC120S14A12045.363552500302315044020040029049091
    QXC130S14A13049.153552500302315044020040029050698.5
    QXC140S14A14052.9235525003023150440200400290521106
    QXC150S14A15056.7035525003023150440200400290536113.5
    QXC160S16A16060.4842625002952150530260310310637120.6
    QXC180S16A18068.0442625002952150530260310310667135.5
    QXC200S16A20075.6042625002952150530260310310697150.8

    ModelS (Vent)

    P (fluoride inlet)

    Copper pipe diameter (inch)

    L(fluoride outlet)

    Copper pipe diameter (inch)

    W (standard port)W (optional port)
    FPT(inner pipe thread)Male flangeMale flange
    QXC110S12A3/83-1/81-5/8DN100DN100
    QXC120S14A3/83-1/81-5/8DN100DN100
    QXC130S14A3/83-1/81-5/8DN100DN100
    QXC140S14A3/83-1/81-5/8DN100DN100
    QXC150S14A3/83-1/81-5/8DN100DN125
    QXC160S16A3/83-1/81-5/8DN125DN125
    QXC180S16A3/83-1/81-5/8DN125DN125
    QXC200S16A3/83-1/81-5/8DN125DN125

    U SHAPED TUBE DRY EVAPORATOR (SINGLE CIRCUIT)


    CAPACITY: 18KW TO 95KW


    ModelsQXU18S5QXU28S5QXU35S6QXU47S6QXU56S6QXU65S6QXU80S8QXU95S8

    Rated data

    Refrigerant R22

    ti=12°C te=2°C

    tu=7°C Dts=5°C

    QnKW18.628.235.14756658095

    Kcal/h

    (×103 )

    162430.240.448.256.768.881.7
    Wnm3 /h46689.611.413.816.4
    Wmm3 /h6.381011.41214.51821
    Dpnbar0.160.290.270.410.350.390.420.46

    ModelsQXU18S5QXU28S5QXU35S6QXU47S6QXU56S6QXU65S6QXU80S8QXU95S8

    Dimension

    (mm)

    A8871037127514071431143116311781
    B140140168168168168219219
    C9797107107161161161161
    D690840104011901030118013801530
    E180180200200200200240240
    VentS11/21/21/21/21/21/21/21/2
    OutletS21/21/21/21/21/21/21/21/2
    ConnectionW(DN)4040505065656565
    D1(mm)2222222222222222
    D2(mm)3535353554545454
    P(kg)495872788893125136

    Qn-rated refrigerating capacity Wn-cooling water flow Wm-maximum cooling water flow

    Dpn-pressure drop of recirculating cooling water Dts-overheat temperature
