    Double System Marine Condensing Unit Non Toxic , Brass Brazing Connection Type

    Ask Lasest Price
    Brand Name : GREEFOUN
    Model Number : QXC130S8
    Certification : CE
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 100000pieces/year
    Delivery Time : within 15days
    • Product Details
    • Company Profile

    Double System Marine Condensing Unit Non Toxic , Brass Brazing Connection Type

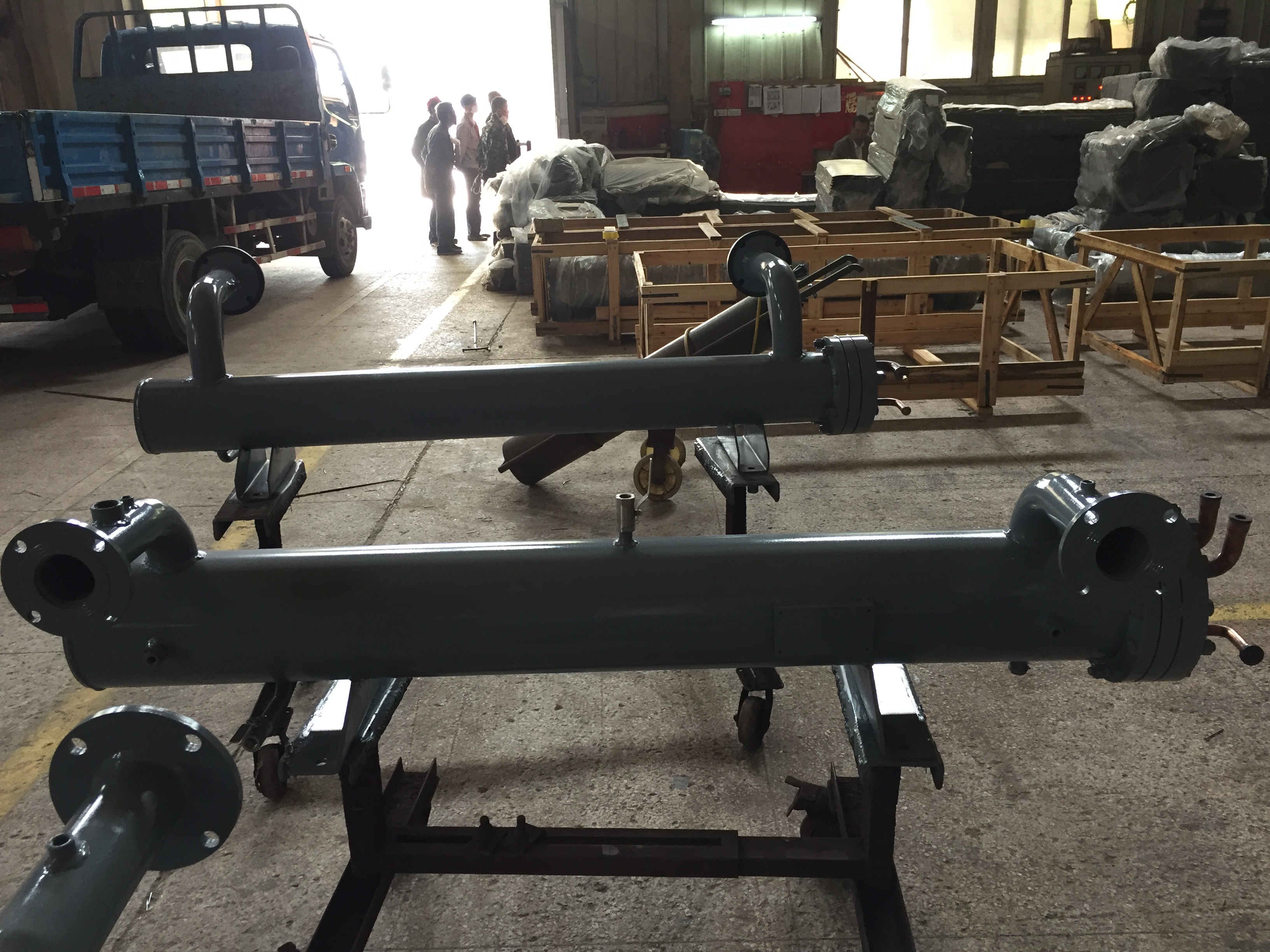

    Condensing Unit Seawater Condenser


    Shell and Tube Heat Exchanger


    Condensing Unit Seawater Condenser Shell and Tube Heat Exchanger is suitable for water cooled unit,


    water source heat pump, air cooled pump and air cooled heat pump unit.

    The product is applying for refrigerants of R22, R134a, R407C and R410A etc.

    The referigerating medium is for tap water, underground water, river water and sea water or brine, water

    and glycol solution, sulfate solution, etc.

    For heat exchange tube, copper pipe, copper nickel alloy tube, aluminum brass tube, stainless steel tube,

    etc.

    The shell raw material mainly are seamless steel tube, stainless steel pipe.


    1, Heat exchange tube: four main tube type.

    (1) ∅ within 3/8 "thread copper coil, it is mainly used for" U "type tube evaporator.

    (2) ∅ within 1/2 "threaded straight copper tube, straight tube is mainly used for dry-type evaporator.

    (3) ∅ 1/2 "corrugated straight stainless steel tube, straight tube is mainly used in food industry of dry

    evaporator.

    (4) ∅ 5/8 "inside outside screw wing efficient copper tube, it is mainly used for air precooling industry dry

    evaporator.

    2, shell raw material:

    There are two of the major materials:

    (1) # 20 seamless steel tube, mainly used for all kinds of load - more than 20 ℃ cold agent.

    (2) 304/316 l stainless steel tube, it is mainly used for food and low temperature (below 25 ℃, higher than

    40 ℃) of the refrigerant, 316 l can also be used for cooling load of the sulfate for industry.

    3, Introduction:


    (1) The product is applicable to water chiller units, water source heat pump units etc.


    (2) Suitable refrigerants are R22, R134a, R407C, R410A etc.


    (3) Apply load cold agent for tap water, underground water, river water and sea water or brine, water and


    glycol solution, sulfate solution, etc.


    (4) For heat exchange tube, copper pipe, copper nickel alloy tube, aluminum brass tube, stainless steel


    tube, etc. Shell using seamless steel pipe, stainless steel tube, etc.


    4, Heat exchange tube: two main specifications.


    (1) ∅ within 5/8 "efficient copper pipe outside screw wing, ∅ 5/8" stainless steel pipe.


    (2) the ∅ 3/4 "inside outside screw wing efficient copper tube, ∅ 3/4" stainless steel pipe


    5, Main material, the shell of 20 # seamless steel pipe, stainless steel pipe.


    CONDENSER SERIES SINGLE CIRCUIT


    CAPACITY: 110RT TO 200RT


    ModelRefrig. ton (RT)Refrig. ton (104kcal/h)Dimension (mm)Weight (kg)Max. water flow
    DT1TACEH1H2
    QXC110S12A11041.583252500296615040618035024041183.5
    QXC120S14A12045.363552500302315044020040029049091
    QXC130S14A13049.153552500302315044020040029050698.5
    QXC140S14A14052.9235525003023150440200400290521106
    QXC150S14A15056.7035525003023150440200400290536113.5
    QXC160S16A16060.4842625002952150530260310310637120.6
    QXC180S16A18068.0442625002952150530260310310667135.5
    QXC200S16A20075.6042625002952150530260310310697150.8

    ModelS (Vent)

    P (fluoride inlet)

    Copper pipe diameter (inch)

    L(fluoride outlet)

    Copper pipe diameter (inch)

    W (standard port)W (optional port)
    FPT(inner pipe thread)Male flangeMale flange
    QXC110S12A3/83-1/81-5/8DN100DN100
    QXC120S14A3/83-1/81-5/8DN100DN100
    QXC130S14A3/83-1/81-5/8DN100DN100
    QXC140S14A3/83-1/81-5/8DN100DN100
    QXC150S14A3/83-1/81-5/8DN100DN125
    QXC160S16A3/83-1/81-5/8DN125DN125
    QXC180S16A3/83-1/81-5/8DN125DN125
    QXC200S16A3/83-1/81-5/8DN125DN125

    CONDENSER SERIES SINGLE CIRCUIT


    CAPACITY: 220RT TO 426RT


    ModelRefrig. ton (RT)Refrig. ton (104kcal/h)Dimension (mm)Weight (kg)Max. water flow
    DT1TACEH1H2
    QXC220S16A22078.5542628603326150530260310310730165.8
    QXC240S16A24081.6542628603326150530260310310763181
    QXC260S20A26084.3648032003666150530280310310802195.5
    QXC280S20A28088.2448032003666150530280400290841211
    QXC320S20A32095.2148032003666150600280400290912240.6
    QXC340S22A34098.6853035003966150600300400290963256
    QXC380S22A380106.53530350039661506503004002901015285.5
    QXC426S22A426115.62530380042661506503004002901088320

    ModelS (Vent)

    P (fluoride inlet)

    Copper pipe diameter (inch)

    L(fluoride outlet)

    Copper pipe diameter (inch)

    W (standard port)W (optional port)
    FPT(inner pipe thread)Male flangeMale flange
    QXC220S16A3/83-1/81-5/8DN125DN125
    QXC240S16A3/83-1/81-5/8DN125DN125
    QXC260S20A3/83-1/81-5/8DN125DN125
    QXC280S20A3/84-1/82-1/8DN150DN150
    QXC320S20A3/84-1/82-1/8DN150DN150
    QXC340S22A3/84-1/82-1/8DN150DN200
    QXC380S22A3/84-1/82-5/8DN200DN250
    QXC426S22A3/84-1/82-5/8DN200DN250

    STEAM TO WATER HEAT EXCHANGER


    CAPACITY: 1000KW TO 4000KW


    ModelCapacity (KW)Dimension (mm)Weight (kg)
    DT1TACEFH1H2
    QXSW60S10100027316002053120360150100350240297
    QXSW70S12125032520322498150406180120350240357
    QXSW80S12140032520322498150406180120350240372
    QXSW90S12160032520322498150406180120350240387
    QXSW100S12180032520322498150406180120350240412
    QXSW120S14210035520322555150440180120400290494
    QXSW140S14250035525003023180440180120400290517
    QXSW180S16320042625002951180530260150260260729
    QXSW220S16400042625002951180530260150260260784

    ModelS1S2W
    SpecificationConnection typeSpecificationConnection typeSpecificationConnection type
    QXSW60S10DN100male flangeDN65male flangeDN80male flange
    QXSW70S12DN100male flangeDN65male flangeDN80male flange
    QXSW80S12DN125male flangeDN80male flangeDN100male flange
    QXSW90S12DN125male flangeDN80male flangeDN100male flange
    QXSW100S12DN125male flangeDN80male flangeDN100male flange
    QXSW120S14DN125male flangeDN80male flangeDN100male flange
    QXSW140S14DN125male flangeDN80male flangeDN100male flange
    QXSW180S16DN150male flangeDN100male flangeDN125male flange
    QXSW220S16DN150male flangeDN100male flangeDN125male flange
