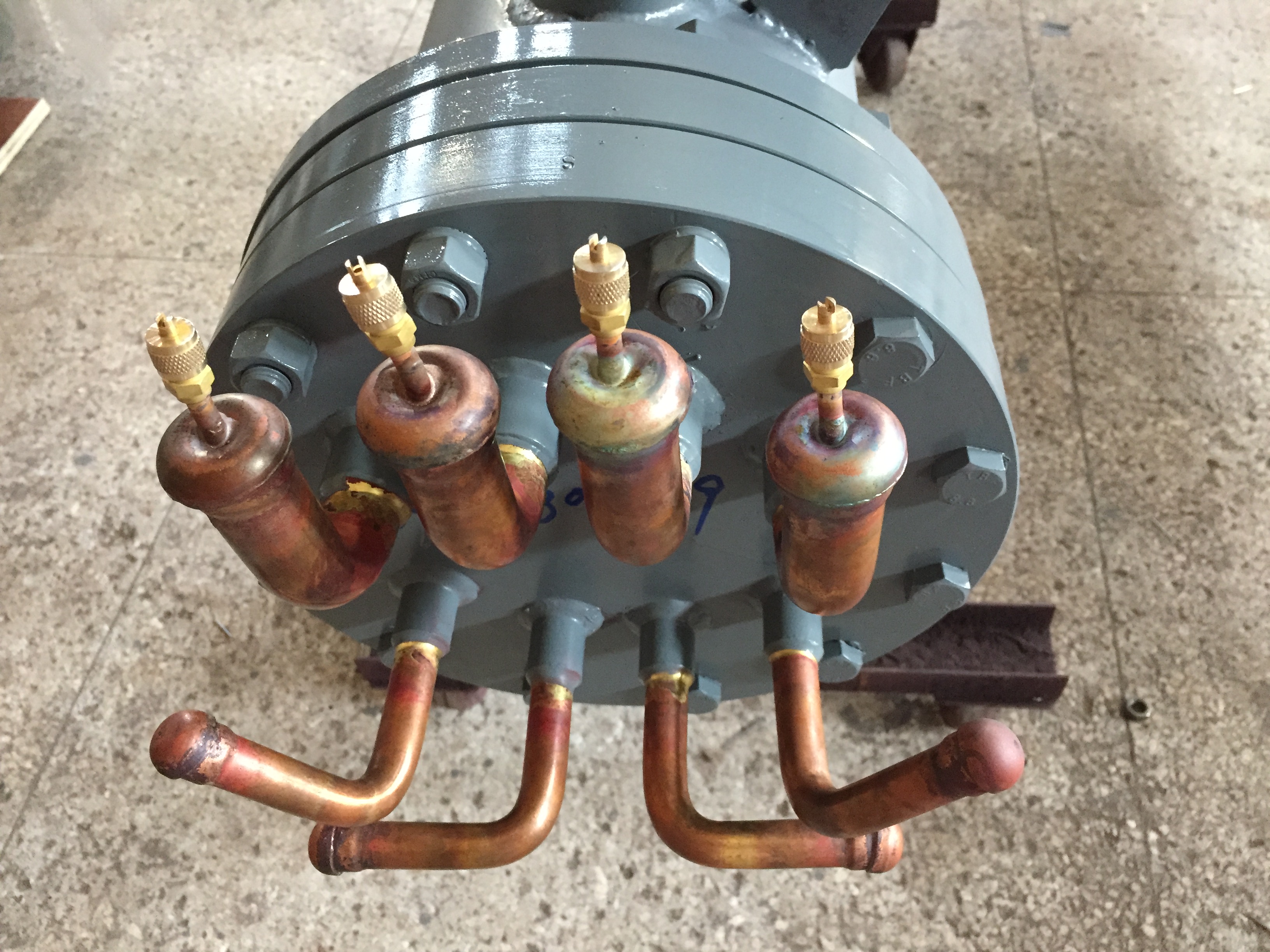

    Fourth System Shell Tube Condenser , Copper High Temperature Heat Exchanger

    Tubular Heat Exchanger Water - Cooled


    Condenser for Commercial Chiller


    Its structure with the horizontal shell and tube condenser is basically similar to the liquid supply can be


    divided into shell and tube evaporator and dry evaporator two.


    Horizontal shell and tube evaporator is widely used in closed brine circulation system. Its main features


    are: compact structure, liquid and heat transfer surface contact with high heat transfer coefficient.


    But it needs to fill a large number of refrigerants, liquid column on the evaporation temperature will have a


    certain impact. And when the brine concentration is reduced or the salt water pump is shut down for any


    reason, the brine may be frozen in the tube.


    If the refrigerant is freon, the freon dissolved lubricating oil is difficult to return to the compressor. Also


    need to stop working when cleaning.


    The main difference between a dry freon evaporator is that the refrigerant flows in the tube and the


    refrigerant flows outside the tube. After the flow of the freon liquid from the lower end of the side of the


    end into the evaporator, after several processes from the top of the end of the cover, the refrigerant in


    the tube with the flow and continue to evaporate, so the wall is part of the possession of steam, so , Its


    heat transfer effect as full liquid.


    However, it has no effect on the evaporative temperature of the liquid column and is better due to the


    higher flow rate of Freon (≥4 m / s).


    In addition, due to the tube filled with a large number of refrigerant, thereby slowing the risk of freezing.


    This kind of evaporator refrigerant charge only enough liquid type 1/2 ~ l / 3 or less, so called "dry


    evaporator".

    CONDENSER SERIES SINGLE CIRCUIT


    CAPACITY: 40RT TO 70RT


    ModelRefrig. ton (RT)Refrig. ton (104kcal/h)Dimension (mm)Weight (kg)Max. water flow
    DT1TACEH1H2
    QXC40S10A4015.122731600205312036015035024020431
    QXC45S10A4517.012731600205312036015035024021235
    QXC50S10A5018.902732032248512036015035024024038.5
    QXC55S10A5520.792732032248512036015035024024942.5
    QXC60S10A6022.682732032248512036015035024025646
    QXC65S10A6524.572732032248512036015035024026449.2
    QXC70S10A7026.462732032248512036015035024027053.5

    ModelS (Vent)

    P (fluoride inlet)

    Copper pipe diameter (inch)

    L(fluoride outlet)

    Copper pipe diameter (inch)

    W (standard port)W (optional port)
    FPT(inner pipe thread)Male flangeMale flange
    QXC40S10A3/81-5/81-1/8DN65DN65
    QXC45S10A3/81-5/81-1/8DN65DN65
    QXC50S10A3/81-5/81-1/8DN65DN80
    QXC55S10A3/81-5/81-1/8DN65DN80
    QXC60S10A3/81-5/81-3/8DN65DN80
    QXC65S10A3/81-5/81-3/8DN65DN80
    QXC70S10A3/82-1/81-3/8DN80DN80

    CONDENSER SERIES SINGLE CIRCUIT


    CAPACITY: 75RT TO 100RT


    ModelRefrig. ton (RT)Refrig. ton (104kcal/h)Dimension (mm)Weight (kg)Max. water flow
    DT1TACEH1H2
    QXC75S12A7528.3503252032248512036018035024033557.2
    QXC80S12A8030.2403252032248512040618035024034361
    QXC85S12A8532.1303252032248512040618035024035064.1
    QXC90S12A9034.0203252032248512040618035024036468
    QXC95S12A9535.9103252032248512040618035024037272.1
    QXC100S12A10037.8003252500296612040618035024037976

    ModelS (Vent)

    P (fluoride inlet)

    Copper pipe diameter (inch)

    L(fluoride outlet)

    Copper pipe diameter (inch)

    W (standard port)W (optional port)
    FPT(inner pipe thread)Male flangeMale flange
    QXC75S12A3/82-1/81-3/8DN80DN100
    QXC80S12A3/82-1/81-3/8DN80DN100
    QXC85S12A3/82-5/81-3/8DN100DN100
    QXC90S12A3/82-5/81-3/8DN100DN100
    QXC95S12A3/82-5/81-3/8DN100DN100
    QXC100S12A3/83-1/81-5/8DN100DN100

    FULL LIQUID TYPE EVAPORATOR AND CONDENSER EXTERNAL OIL (SINGLE CIRCUIT)


    CAPACITY: 350KW TO 650KW


    ModelsQX-350MQX-370MQX-410MQX-460MQX-530MQX-570MQX-650M
    Refrigerant R22 (or other environmental refrigerants)Refrigerating capacity (KW)350370410460530570650
    Heating capacity (KW)400445480540630690730
    Wam3/h6163.5718091.598.6112.3
    Wbm3/h768088.5100114.3123141
    Dpnbar0.530.550.510.520.550.600.61

    ModelsQX-350MQX-370MQX-410MQX-460MQX-530MQX-570MQX-650M
    Dimension(mm)A2050205020502050235023502540
    A1400400450450450450450
    A2350350380380380380380
    L12200220022002200250025002690
    B1140114013001300130013001300
    B1600600680680680680680
    C1808808870870870870870
    C2808808870870870870870
    D1355355426426426426426
    D2426426480480480480480
    H1280280300300300300300
    H2240240260260260260260

    Inlet/Outlet (diameter)

    Connection

    a/b(DN)125125150150150150150
    c1-2 (mm)35353535424242
    d1(mm)80929292929292
    d2(mm)54676767678080
    Corresponding external oilVolume (L)45505560657075
    WeightP (KG)45158069078692010281150

    Notes: Wa water flow capacity of evaporator Wb water flow capacity of condenser Dpn circulating cooling water

    Refrigerating work position: evaporating temperature 5°C, condensing temperature 34°C, chilled water inlet temperature 12°C and outlet 7°C, cooling water inlet temperature 18°C and outlet 29°C

    Heating work position: evaporating temperature 4.5°C, condensing temperature 50°C, hot water inlet temperature 40°C and 45°C, heat source water inlet temperature 16°C and 7°C.
