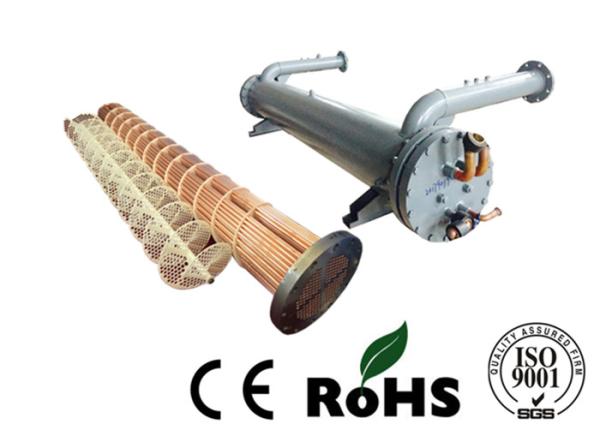

    Air Cooled Water Chiller Tubular Heat Exchanger Dry Type Sprial Baffle Plate

    Ask Lasest Price
    Brand Name : GREEFOUN
    Model Number : RE26
    Certification : CE
    Payment Terms : TT, L/C, Western Union
    Supply Ability : 100000pieces/year
    Delivery Time : within 15days
    • Product Details
    • Company Profile

    Air Cooled Water Chiller Tubular Heat Exchanger Dry Type Sprial Baffle Plate

    Air Cooled Water Chiller Tubular Heat Exchanger


    Dry Type Sprial Baffle Plate


    Air-cooled unit, air-cooled heat pump unit is usually a lot of no heating boiler, no heat for the network, or


    no other stable and reliable power supply, but also require air conditioning HVAC engineering design


    preferred program.


    Air-cooled in the air-cooled heat pump is the air for the cold (hot) source to the water for the cooling (hot)


    medium of the central air conditioning unit.


    As an integrated device for both cold and hot sources, the air-cooled heat pump eliminates many


    accessories such as cooling towers, water pumps, boilers and corresponding piping systems. Simple


    system structure, easy installation space, easy maintenance and energy saving, especially for areas


    where water resources are scarce.


    Therefore, the air-cooled heat pump unit is usually a lot of no heating boiler, no heat for the network, or


    no other stable and reliable power supply, but also requires the annual air-conditioning HVAC engineering


    design preferred program, Tube, air conditioning box and other end devices composed of centralized,


    semi-centralized central air conditioning system with flexible layout, control and other characteristics of


    various ways.


    U SHAPED TUBE DRY EVAPORATOR (DOUBLE CIRCUIT)


    CAPACITY: 120KW TO 310KW


    ModelsQXU120D8QXU135D8QXU155D8QXU185D10QXU220QXU270QXU310D10

    Rated data

    Refrigerant R22

    ti=12°C te=2°C

    tu=7°C Dts=5°C

    QnKW120135155185220270310

    Kcal/h

    (×103 )

    103.2116133.3159189232267
    Wnm3 /h20.623.226.731.837.846.453.3
    Wmm3 /h25283041436568
    Dpnbar0.410.440.370.360.430.420.43

    ModelsQXU120D8QXU135D8QXU155D8QXU185D10QXU220D10QXU270D1QXU310

    Dimension

    (mm)

    A1815211523152320232026542654
    B219219219219273273273
    C200200200200234234234
    D1530183020302000200022802280
    E240240240300300300300
    VentS11/21/21/21/21/21/21/2
    OutletS21/21/21/21/21/21/21/2
    ConnectionW(DN)89898989114114114
    D1(mm)22222222353535
    D2(mm)42424242545454
    P(kg)145155163232255279296

    Qn-rated refrigerating capacity Wn-cooling water flow Wm-maximum cooling water flow

    Dpn-pressure drop of recirculating cooling water Dts-overheat temperature


    CONDENSER SERIES DOUBLE CIRCUIT


    CAPACITY: 220RT TO 426RT


    ModelRefrig. ton (RT)Refrig. ton (104kcal/h)Dimension (mm)Weight (kg)Max. water flow
    DT1TACEH1H2
    QXC220D16A22078.5542614303656120530260310310830165.8
    QXC240D16A24081.6542614303656120530260310310890181
    QXC260D20A26084.3648016003800150530280310310953195.5
    QXC280D20A28088.24480160038001505302803502401016211
    QXC320D20A32095.21480160038001806003003502401098240.6
    QXC340D22A34098.68530175040001806003003502401162256
    QXC380D22A380106.53530175040002006503004003201253285.5
    QXC426D22A426115.62530190040002006503004203501325320

    ModelS (Vent)

    P (fluoride inlet)

    Copper pipe diameter (inch)

    L(fluoride outlet)

    Copper pipe diameter (inch)

    W (standard port)
    FPT(inner pipe thread)Male flange
    QXC220D16A3/82-5/81-5/8DN125
    QXC240D16A3/82-5/81-5/8DN125
    QXC260D20A3/82-5/81-5/8DN125
    QXC280D20A3/83-1/82-1/8DN150
    QXC320D20A3/83-1/82-1/8DN150
    QXC340D22A3/84-1/82-1/8DN150
    QXC380D22A3/84-1/82-1/8DN200
    QXC426D22A3/84-1/82-1/8DN250
