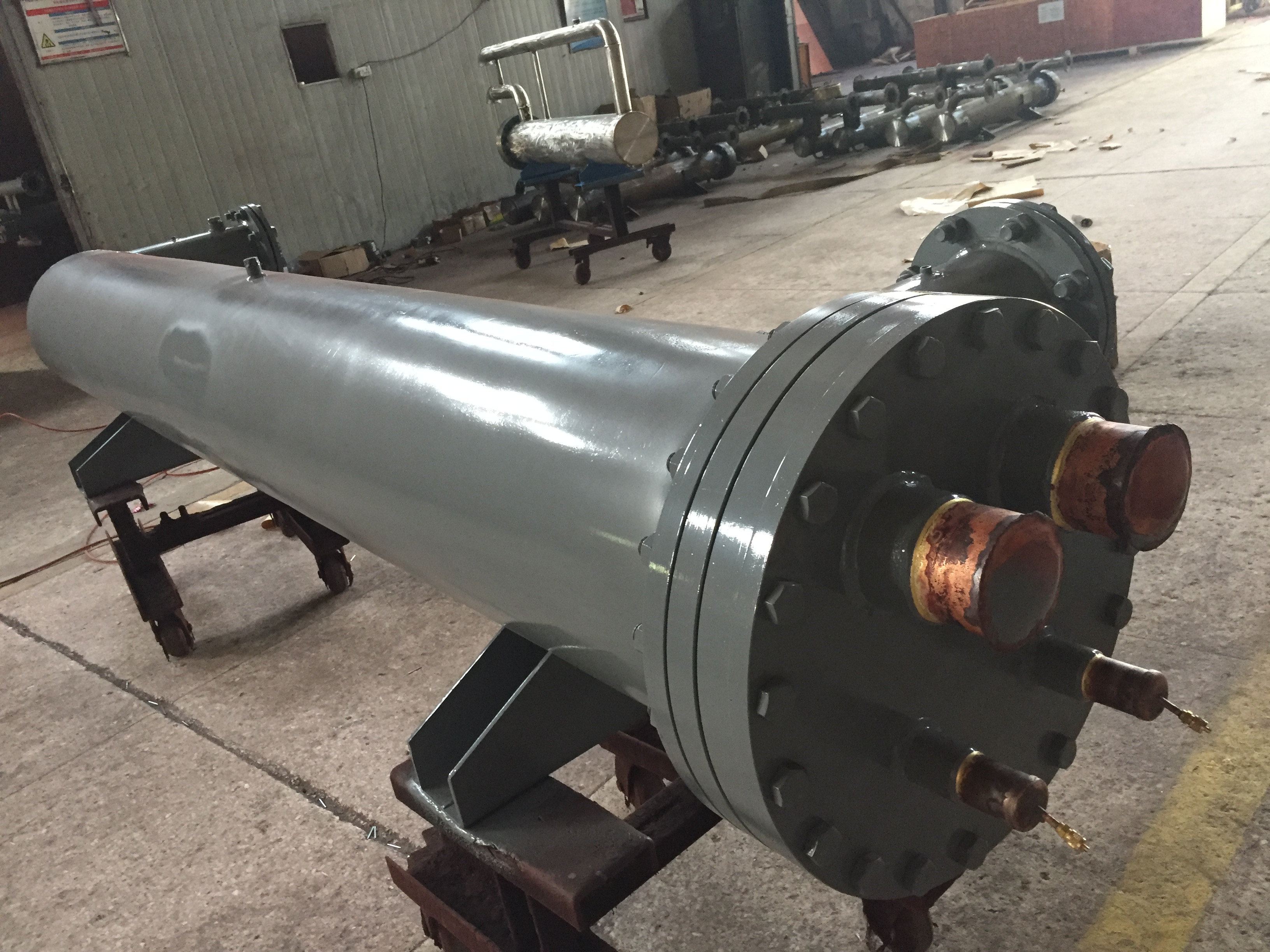

    U Type High Pressure Heat Exchanger Anti - Corrosion , Tenon Surface Connection Type

    Ask Lasest Price
    Brand Name : GREEFOUN
    Model Number : QXU148S8
    Certification : CE
    Payment Terms : TT, L/C, Western Union
    Supply Ability : 100000pieces/year
    Delivery Time : within 15days
    • Product Details
    • Company Profile

    U Type High Pressure Heat Exchanger Anti - Corrosion , Tenon Surface Connection Type

    Anti - Corrision Tube Heat Exchanger


    High Pressure Heat Exchanger


    Anti - Corrision Tube Heat Exchanger High Pressure Heat Exchanger is suitable for water cooled unit,


    water source heat pump, air cooled pump and air cooled heat pump unit.

    The product is applying for refrigerants of R22, R134a, R407C and R410A etc.

    The referigerating medium is for tap water, underground water, river water and sea water or brine, water

    and glycol solution, sulfate solution, etc.

    For heat exchange tube, copper pipe, copper nickel alloy tube, aluminum brass tube, stainless steel tube,

    etc. The shell raw material mainly are seamless steel tube, stainless steel pipe.


    1, Heat exchange tube: four main tube type.

    (1) ∅ within 3/8 "thread copper coil, it is mainly used for" U "type tube evaporator.

    (2) ∅ within 1/2 "threaded straight copper tube, straight tube is mainly used for dry-type evaporator.

    (3) ∅ 1/2 "corrugated straight stainless steel tube, straight tube is mainly used in food industry of dry

    evaporator.

    (4) ∅ 5/8 "inside outside screw wing efficient copper tube, it is mainly used for air precooling industry dry

    evaporator.

    2, shell raw material:

    There are two of the major materials:

    (1) # 20 seamless steel tube, mainly used for all kinds of load - more than 20 ℃ cold agent.

    (2) 304/316 l stainless steel tube, it is mainly used for food and low temperature (below 25 ℃, higher than

    40 ℃) of the refrigerant, 316 l can also be used for cooling load of the sulfate for industry.


    Dry type spiral baffle plate evaporator, flooded evaporator, built-in oil separator condenser, sea water


    condenser, stainless steel heat exchanger, oil cooler

    3, interface:


    Dry type spiral baffle plate evaporator, flooded evaporator, built-in oil separator condenser, sea water


    condenser, stainless steel heat exchanger, oil cooler, oil separator, gas-liquid separator and liquid


    accumulator.


    The large production equipment includes 10 sets of CNC machining center, 8 sets of CNC


    tube expanders, multiple copper pipe automatic straightening rotary cutting machine, copper pipe bender,


    CNC tapping machine and automatic welding machine.


    WATER TO WATER HEAT EXCHANGER


    CAPACITY: 100KW TO 400KW


    ModelCapacity (KW)Dimension (mm)Weight (kg)
    DT1TACEFG
    QXWW8S6100168762858801859280051
    QXWW15S620016812701366801859280078
    QXWW20S8300219127013801002381138030/0118
    QXWW30S8400219127013801002381138030/0131

    ModelW1W2
    SpecificationConnection typeSpecificationConnection type
    QXWW8S6G1-1/2internal pipe threadG1-1/2internal pipe thread
    QXWW15S6G1-1/2internal pipe threadG1-1/2internal pipe thread
    QXWW20S8G2internal pipe threadG2internal pipe thread
    QXWW30S8G2-1/2internal pipe threadG2-1/2internal pipe thread

    WATER TO WATER HEAT EXCHANGER


    CAPACITY: 500KW TO 3500KW


    ModelCapacity (KW)Dimension (mm)Weight (kg)
    DT1TACEFH1H2
    QXWW35S1050027312701723120360150100350240200
    QXWW50S1070027316002053120360150100350240237
    QXWW70S12100032520322498150406180120350240322
    QXWW100S12150032520322498150406180120350240367
    QXWW140S14200035525003023180440180150400290512
    QXWW170S16250042625002951180530260150310310693
    QXWW200S16300042625002951180530260150310310736
    QXWW240S16350042625002951180530260150310310795

    ModelW1W2
    SpecificationConnection typeSpecificationConnection type
    QXWW35S10DN80male flangeDN80male flange
    QXWW50S10DN80male flangeDN80male flange
    QXWW70S12DN100male flangeDN100male flange
    QXWW100S12DN100male flangeDN100male flange
    QXWW140S14DN100male flangeDN100male flange
    QXWW170S16DN125male flangeDN125male flange
    QXWW200S16DN125male flangeDN125male flange
    QXWW240S16DN125male flangeDN125male flange

    VERTICAL ACCUMULATOR


    CAPACITY 10L TO 80L


    ModelsLDimension (mm)Kg
    DABH1H2
    QXR10L1027322022030035021
    QXR15L1527322022040045026
    QXR20L2032528028040045035
    QXR30L3035530030045050047
    QXR40L4035530030060065058
    QXR60L6042636036060065076
    QXR80L8042636036060085097

    ModelsS (pipe thread)P1P2
    FPTPipe diameter (inch)Pipe diameter (inch)
    QXR10L3/87/87/8
    QXR15L3/81-1/81-1/8
    QXR20L3/81-3/81-3/8
    QXR30L3/81-3/81-3/8
    QXR40L3/81-3/81-3/8
    QXR60L3/81-5/81-5/8
    QXR80L3/81-5/81-5/8
